Macnaught’s 5:1 High Flow Mobile Oil Dispensing Kit is suitable for dispensing oil at medium/high viscosity for mobile installations and fixed system at medium to lengthy distances. For 60 Liter / 16 gallon kegs. Features Heavy duty air operated oil pump. Easy to use Digital Control Gun that dispenses in gallons, quarts, pints and liters. Multi-drum trolley ensures high mobility and high efficiency. Supplied with adjustable 2 in. bung adapter.
3 Year Warranty!

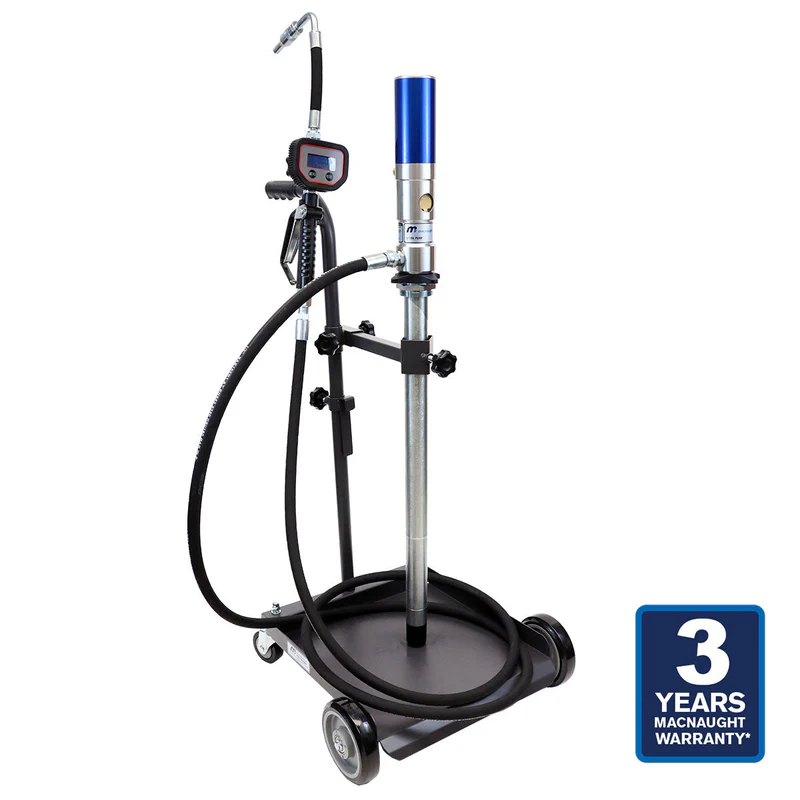

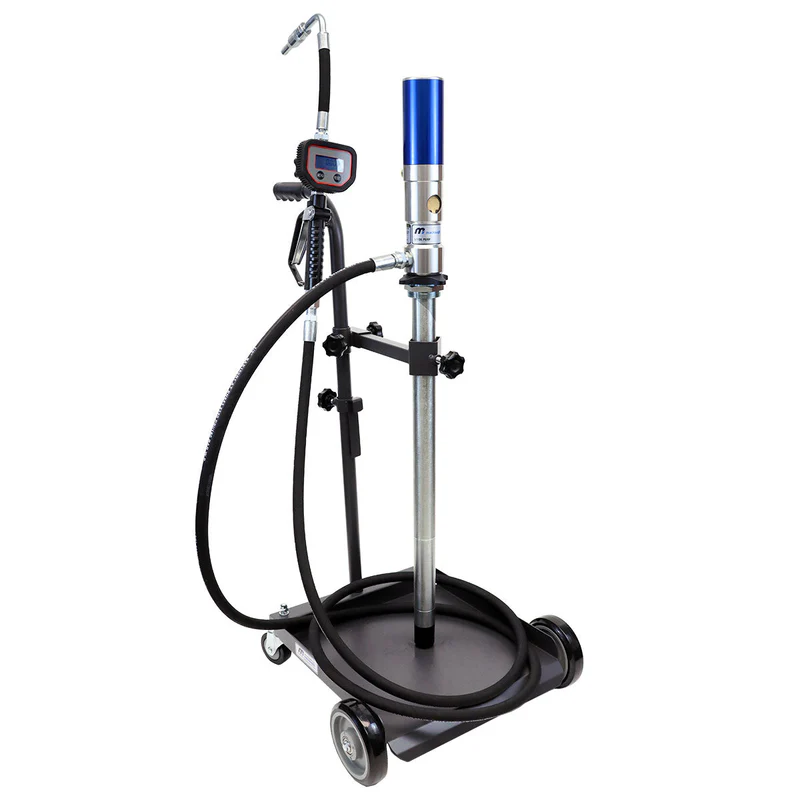

Macnaught M3 Mobile 5:1 High Flow Oil Dispensing Kit
PUMP SPECS
DIGITAL OIL CONTROL GUN SPECS
TROLLEY SPECS
Heavy Duty Rated 5:1 Oil Pump
Registers: Quarts, Pints, Gallons, Liters
Heavy Duty Design
Air Inlet Operating Pressure: 30-150 PSI / 207-1034 kPa
low Range: .3 – 9.25 GPM / 1.1-35 LPM
5 – 16 Gallon
Air Motor Diameter: 2.5″
MMax Pressure: 1500 PSI / 10342 kPa
Drum, Pump, Gun Holder Included
Air Consumption / Min: 2.8 CFM at 150 PSI / 1035 kPa
Measures all grades of Oils, Coolant & ATF at .5%
Front Swivel Casters
Max Fluid Pressure 750 PSI / 5170 kPa
Flexible 90 degree Spout w Auto Nozzle
Free Flow GPM: 4
Inlet: 1/2″ FNPT
Suction Tube Diameter: 1 5/8″
Suction Tube Length: 28 3/4″
Adjustable 2″ Bung Adapter
Air Inlet Connection: 1/4″ FNPT
Oil Outlet Connection: 1/2″ MNPT
Hose: SAE 100R1 2320 PSI 13ft x 1/2″ SS Female Swivel
Macnaught’s 5:1 Mobile Oil Dispensing Kit data sheet
Instruction Manual: PDF
Features & Benefits:
• Double Acting, Highly Efficient & Light Weight
• Suitable for all oils up to SAE 140W
• Waste Oil, Coolant and ATF compatible
• Each M3 Oil Pump comes with Suction Tube & Filter
• Adjustable 2 inch Bung Adapter
• Minimal Internal Pump Component Design
• 3 Year Warranty
Applications:
Automotive
Truck and buses
Farming
Constructions and Earthmoving
Military
Mining
Aircraft
Trains
