Macnaught MT Turbine Flow Meters are Heavy Duty Industrial Grade Velocity Flow Fluid Measuring Devices.
Our MT Meters utilize decades of proven cost-effective technology. Additionally, each meter is machined from solid 316 Stainless Steel Billet for reliable industrial performance.
Macnaught Turbine Meters are for clean process fluids only and do not measure gases. Fluids with solids that can not be removed upstream of the meter are not recommended.

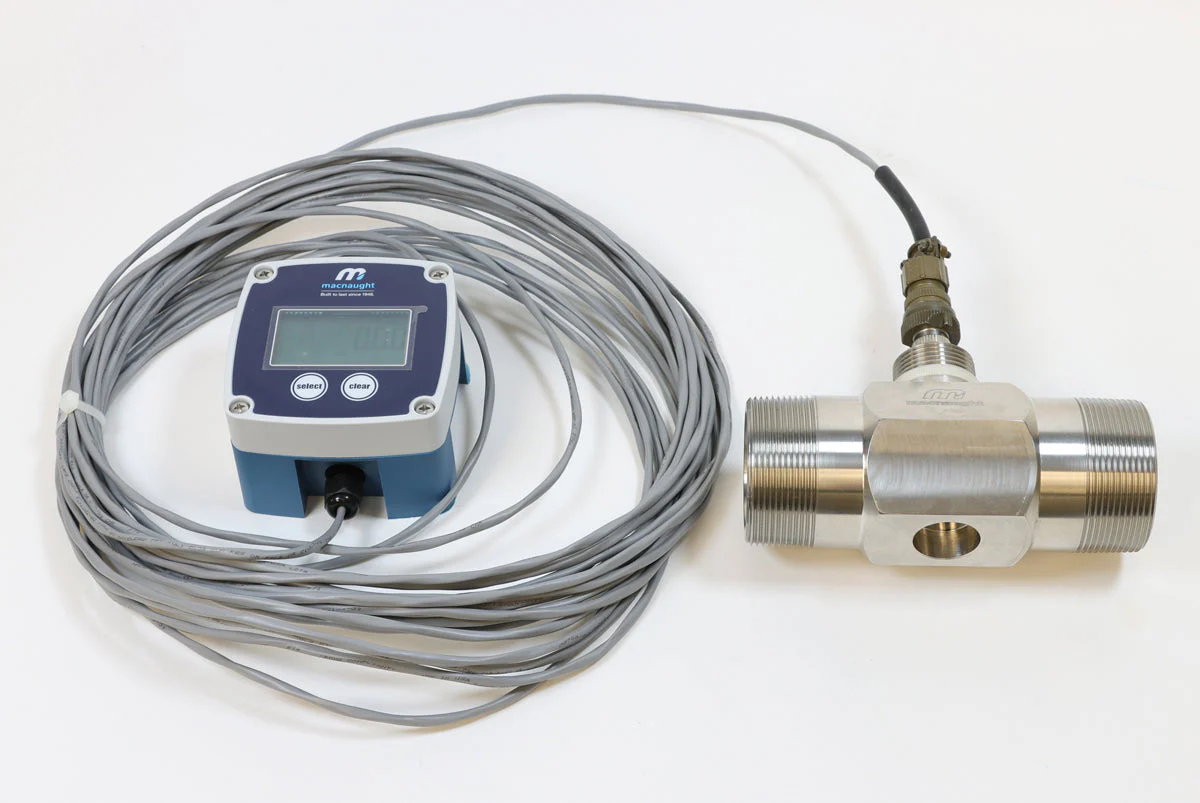

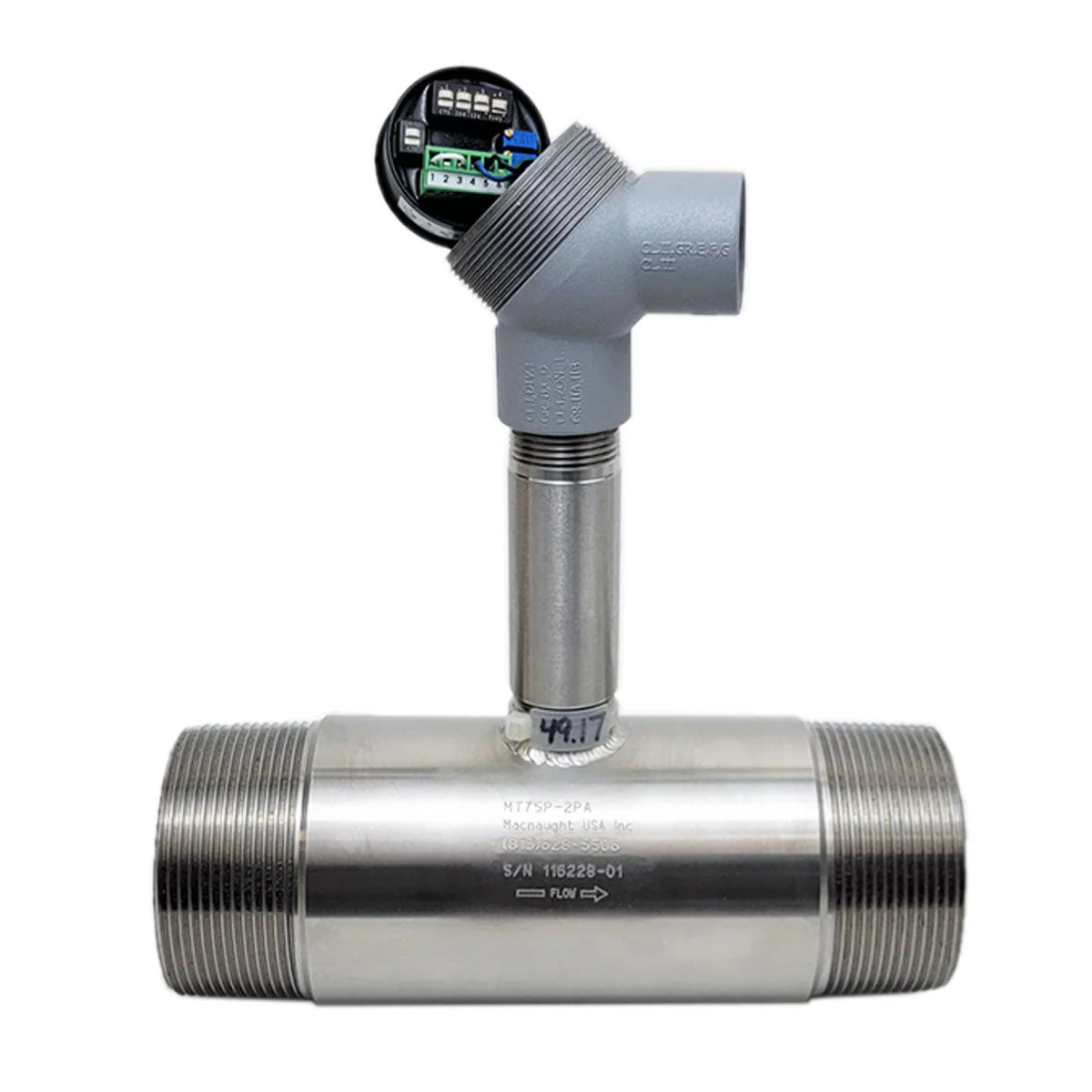

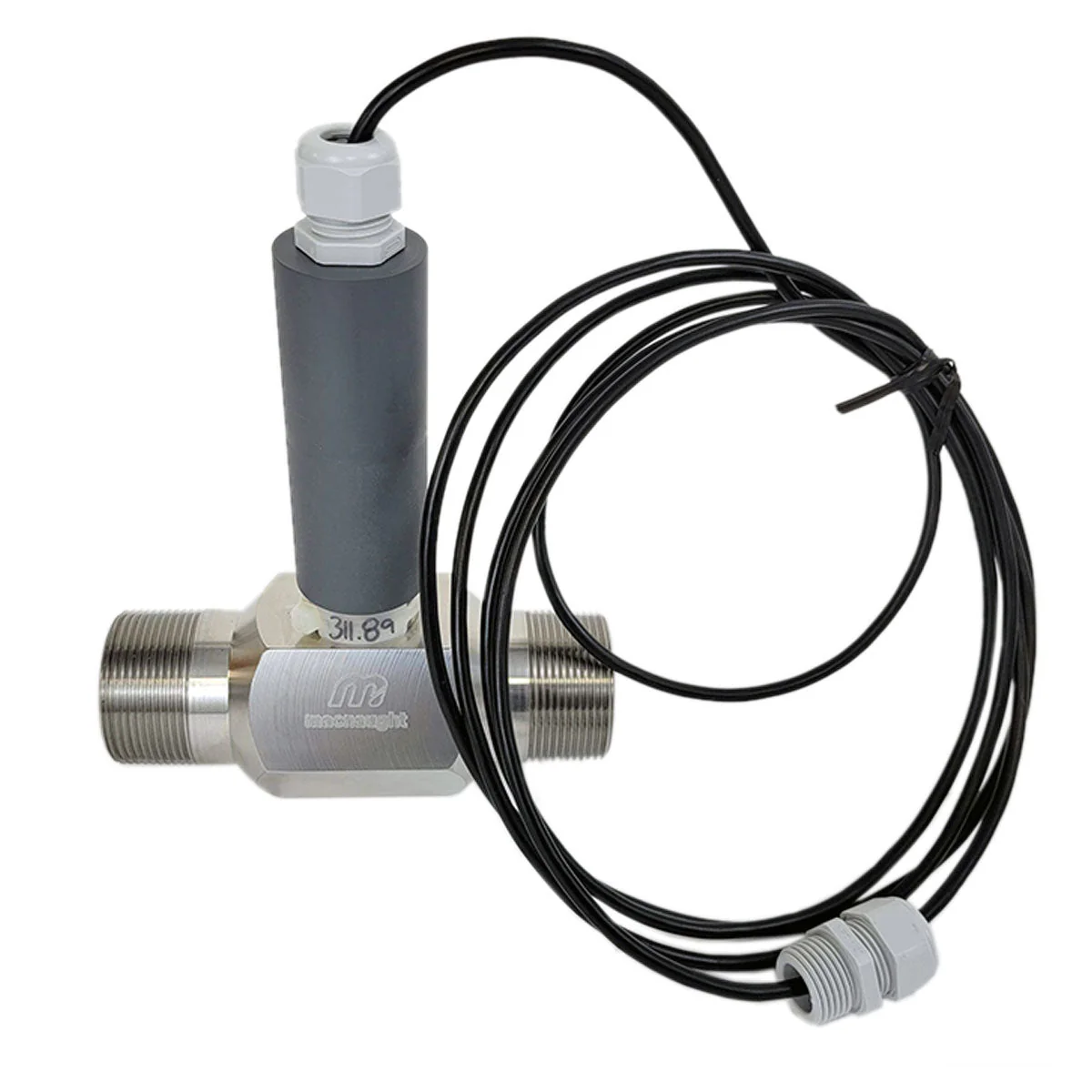

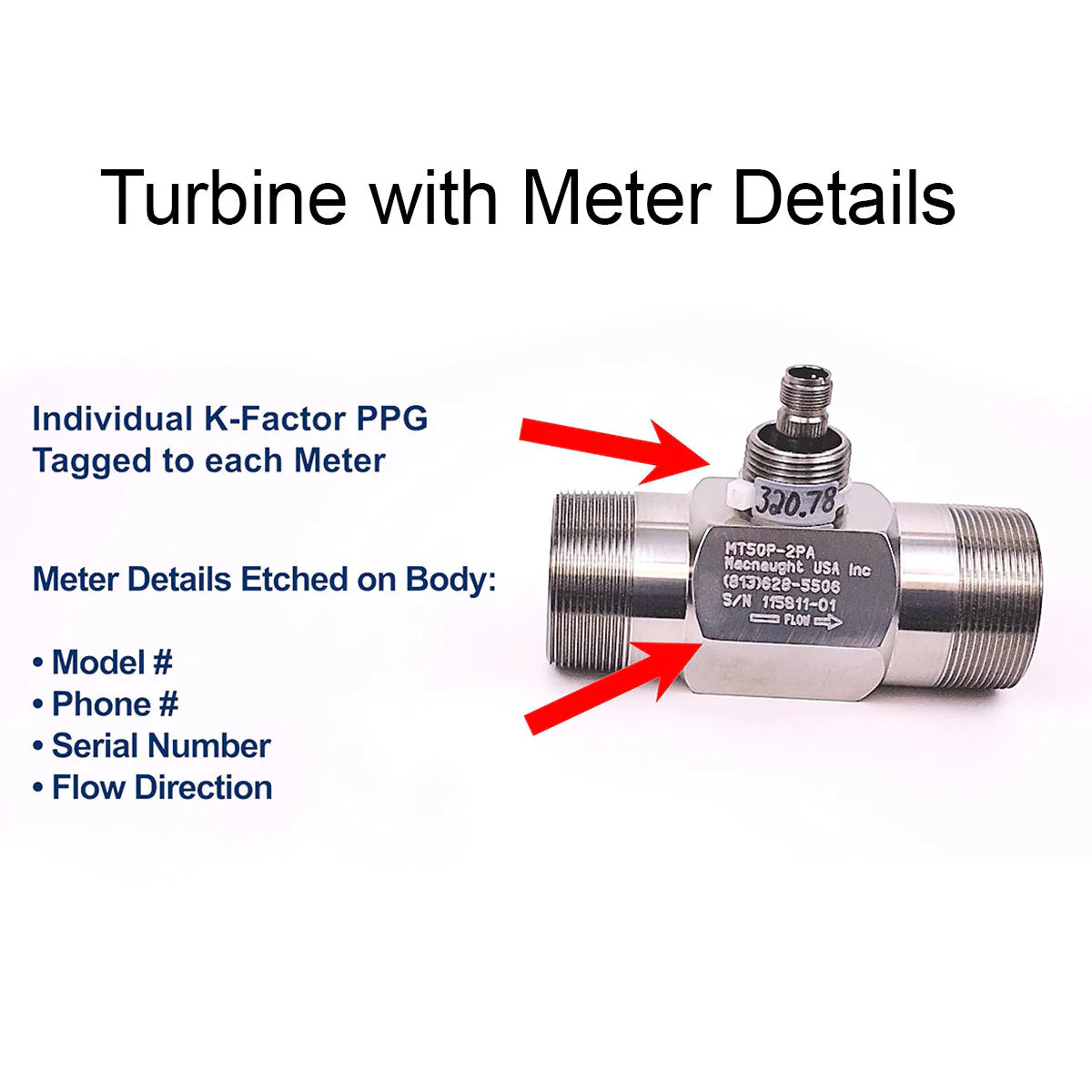

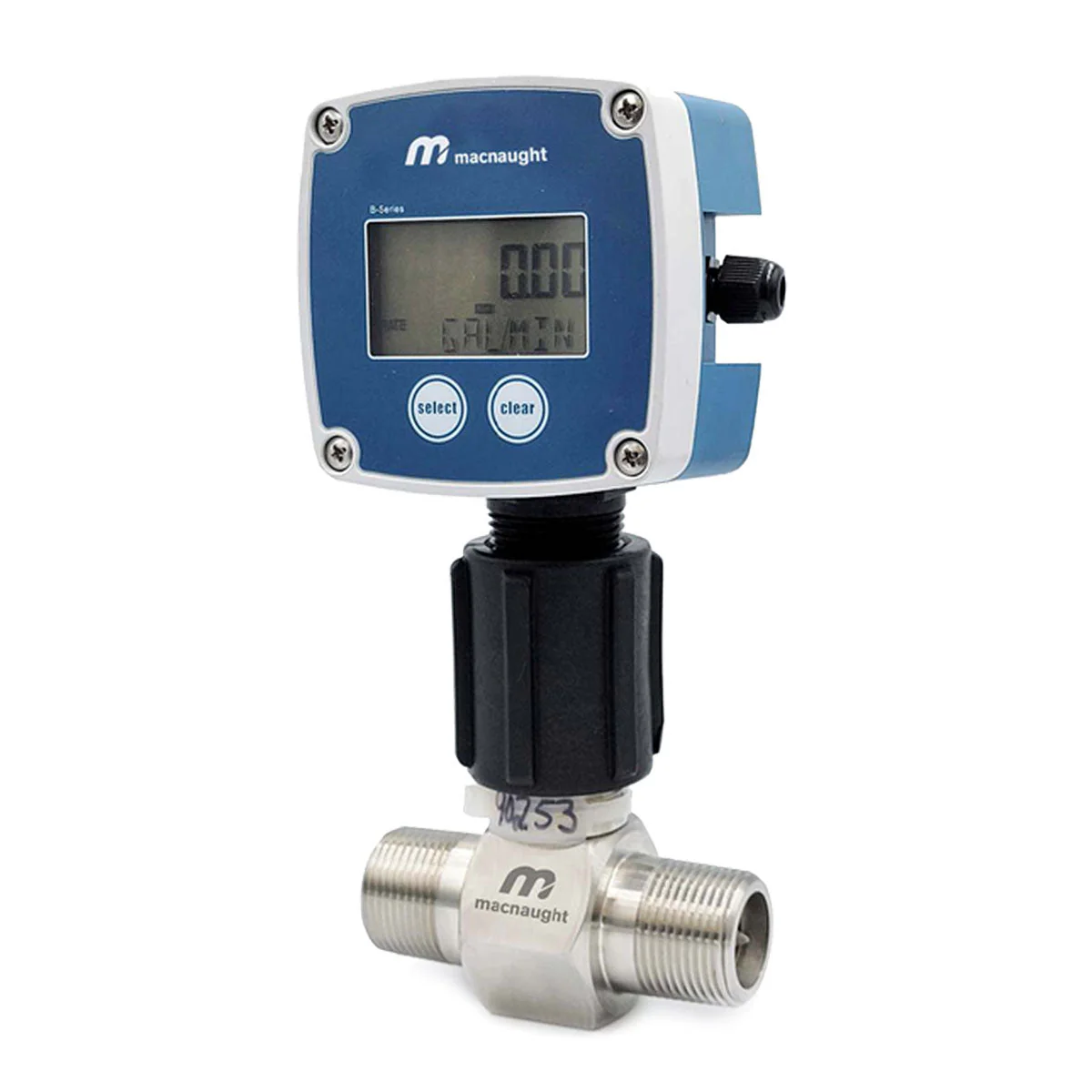

Macnaught Turbine Flow Meter Overview
Macnaught MT Turbine Flow Meters are Heavy Duty Industrial Grade Velocity Flow Fluid Measuring Devices.
Our MT Meters utilize decades of proven cost-effective technology. Additionally, each meter is machined from solid 316 Stainless Steel Billet for reliable industrial performance.
Macnaught Turbine Meters are for clean process fluids only and do not measure gases. Fluids with solids that can not be removed upstream of the meter are not recommended.
MT Meters provide inline 1% Accuracy Over Flow Range with .1% Repeatability.
In Stock Sizes ½” thru 4” .75 GPM to 1,200 GPM
Designed for Precise Volumetric Clean Process Fluid Measurement
Larger Sizes Available up to 10”
Flow Conditioning is Required – typically 20D upstream x 5D downstream
High-Pressure Range of 5,000 PSI up to 2 inch
Immediate Response to Flow Meter Inquires
Principle of Operation
Turbine flowmeters work by using the energy of the fluid passing through the meter to move a rotor within the fluid passing through.
The rotational speed of the rotor is directly proportional to the velocity of the line fluid and is a true representation of the volume of fluid traveling through the meter ( Fig 1 ).
The rotor material is magnetic in nature and the housing is non-magnetic. A magnetic pick-up sensor is positioned as close as possible to the rotor and senses the electrical pulses generated in the spinning rotor ( Fig 2 ).
Each pulse represents a known volume of fluid. The frequency rate of the output represents the flow rate and the accumulated pulses represent the total volume of flow.

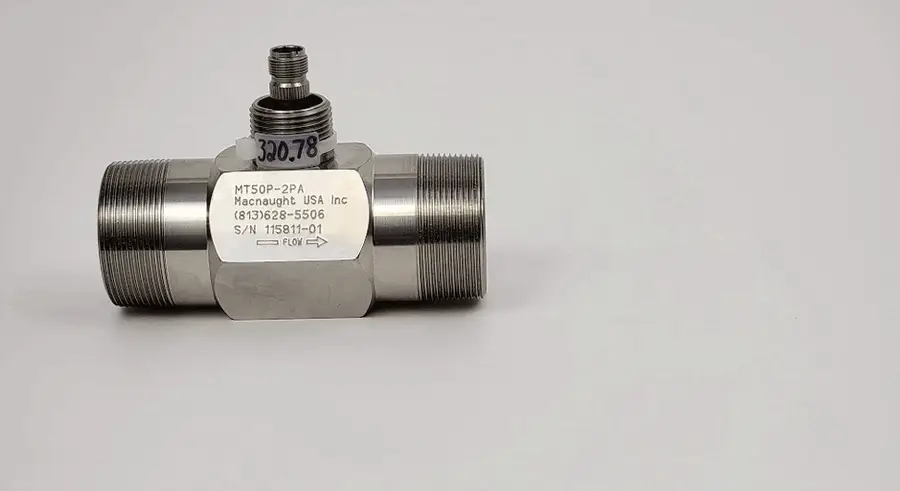

TURBINE METER FLOW
MT Meter Specifications
Model
Size Connection
Flow Range GPM
Flow Range
BBD
Max
Pressure
STD Temp
Range
MT12
½” MNPT
.75-7.5 GPM
25-250 BBD
5000 PSI
-100F to 150F
MT19
¾” MNPT
2-15 GPM
68-514 BBD
5000 PSI
-100F to 150F
MT25
1” MNPT
5-50 GPM
170-1714 BBD
5000 PSI
-100F to 150F
MT40
1.5″ MNPT
15-180 GPM
514-6000 BBD
5000 PSI
-100F to 150F
MT50L
2” MNPT
15-180 GPM
514-6000 BBD
5000 PSI
-100F to 150F
M50H
2″ FNPT
40-400 GPM
1371-13714 BBD
5000 PSI
-100F to 150F
MT75
3″ MNPT
60-600 GPM
2100-21000 BBD
800 PSI
-100F to 150F
MT100
4” MNPT
120-1200 GPM
4100-41000 BBD
800 PSI
-100F to 150F
