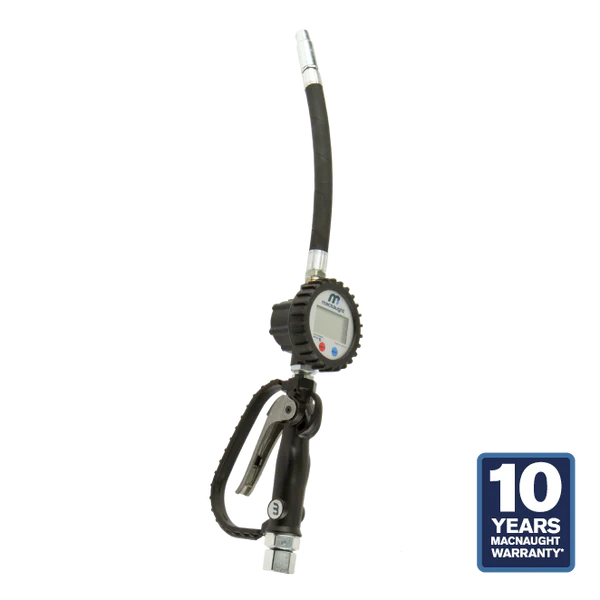

Metered Control Gun HG20 & IM012E, 1/2″ NPT inlet, flexible extension, 30 LPM/8 GPM flow rate, 1000psi.
Macnaught offers the HG20F-012E-02 highly accurate electric metered oil control with a flexible extension and automatic non-drip nozzle. The meter features a 6-digit totalizer and resettable batch total. It comes with a trigger guard, latching trigger and is fully serviceable. With a ½ inch NPT inlet and maximum working pressure up to 1000 psi / 6900 kPa this gun delivers a flow rate of up to 8 gpm / 30 lpm. Used for oil, ATF and antifreeze up to a maximum viscosity of SAE 140.
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02
Macnaught Metered Control Gun Specifications
Model number
HG20F-012E-02
Flow Range
up to 8gal (30L)/min
Inlet Swivel
1/2″ NPT (F)
Meter
Electronic
Meter Accuracy
+/-0.5%
Features
6 digit totalizer
Extension
Flexible with non-drip nozzle
Non drip nozzle
Automatic
Latching Trigger
√
Fully Serviceable
√
Warranty
10 years
Parts Guarantee
10 years
Compatible Fluid
engine, gear, ATF, hydraulic oils up to SAE140 viscosity & anti-freeze/anti boil
Max Working Pressure
1000psi (6900kPa)
Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF
Features & Benefits:
Digital meter accurate to +/- 0.5%
6-digit totalizer
Auto Non-Drip Nozzle
Flexible extension
1/2″NPT swivel inlet
Trigger guard
Trigger lock
Fully serviceable
