Retractable Hose Reels for Grease.

RACR Hose Return Speed Control Makes Safety a Priority. Eliminate Injury & Equipment Damage. Engineered To Maintain Superior Reliability & Longevity For Grease in a Wide Range of Industrial and Commercial Applications with a Working Pressure up to 5000psi. Easily Mounts on Bench, Floor, Wall or Ceiling.

INNOVATION BY DESIGN. ALL NEW RETRACTA R3.
The new R3 family of polypropylene hose reels from Retracta brings robust durability in to a new era. 2 years in development, the new R3 range stays true to the Retracta name offering high quality, superior performance and even better value for money. The R3 is engineered to maintain the superior reliability and longevity of it’s predecessors. The R3 family offers enhanced usability through the innovative use of materials and design.

RACR® SYSTEM

At the heart of this innovation is the patented RACR® ‘Retracta Adjustable Control Return’ system supplied on all R3 RACR® models. This world first control return system offers not only the safety of slowing the return speed of the hose when free to return, but goes beyond the simple one size fits all ‘slow return’ approach of noisy, fast wearing braking systems. Instead, the RACR® system offers true control by allowing the user to set the speed of return to suit their individual requirements. And, because Retracta is all about reliability and longevity, the RACR® System is fully serviceable and carries the same 10 year warranty and parts guarantee found with the entire R3 family.

INCLUDES 10 YEAR WARRANTY!

Macnaught Retracta RACR Specifications

Description

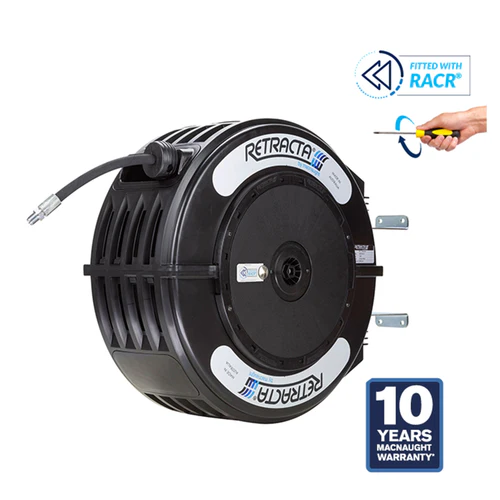

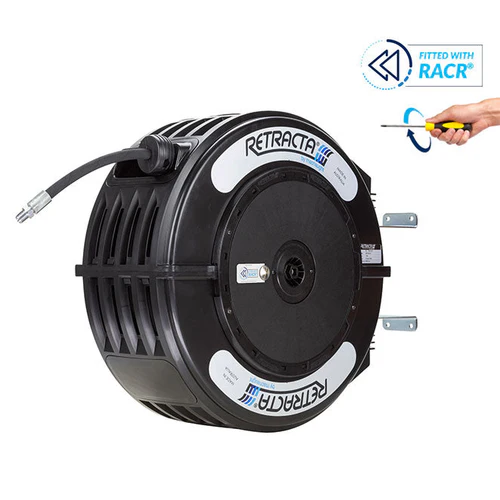

Retracta R3 RACR Reel

Part No.
GRC250K-02

Application
Grease

Hose Id
1/4″

Hose Length
50’/15m

WP (psi)
5000 psi.

Weight
34lbs

Case / Hose
Black/Black

Hose Material
Reinforced rubber (SAE100R2)

Max Temp (°C)
140°F/60°C

Reel Inlet
1/4”NPT F

Hose Outlet
1/4”NPT M

Warranty
10 Year

Fully Serviceable
√

Features & Benefits

RACR® system
New high-wear resistant mouth design
Integrated handle
Wider mounting bracket
Overrun protection on spring
Increased internal capacity
Upgraded Main Spring (interior)
Light weight & corrosion resistant

Retracta Flex Premium Grease Hose

No memory
Eliminates Kinking
Heavy Duty & Lightweight

Additional Notes

Additional Case & Hose Colors available.
Custom / OEM / Private Label available
Feeder hose not provided

Retracta R3 Instruction Manual: Macnaught R3 Engineered Thermoplastic Heavy Duty Retractable. pdf

Macnaught Retracta Data Sheet: retracta-r3-1 DATA SHEET. pdf

Video Overview: Retractable Adjustable Return Safety Hose Reel. Self winding hose reels for water, oil, grease, air. – YouTube
