$1,106.00

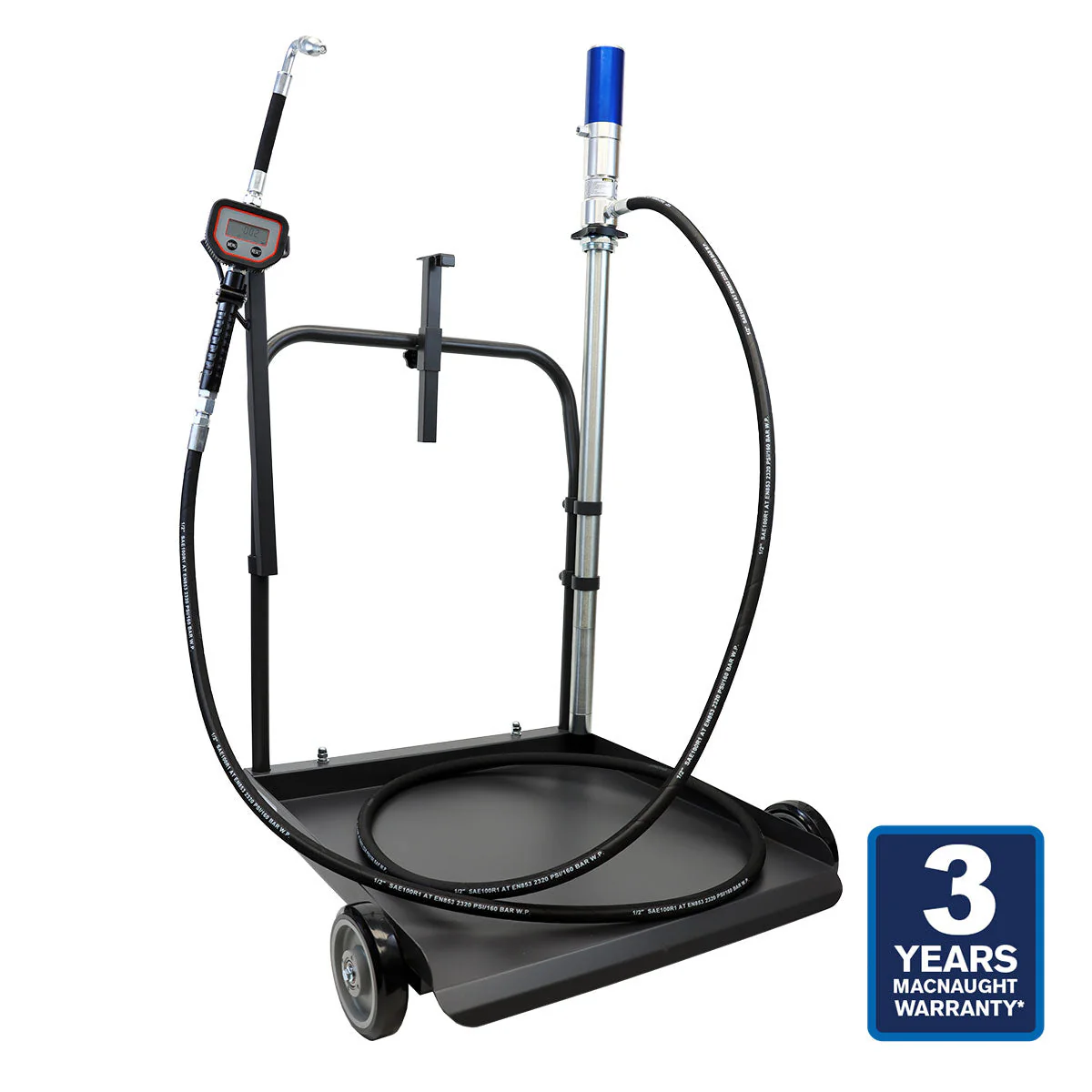

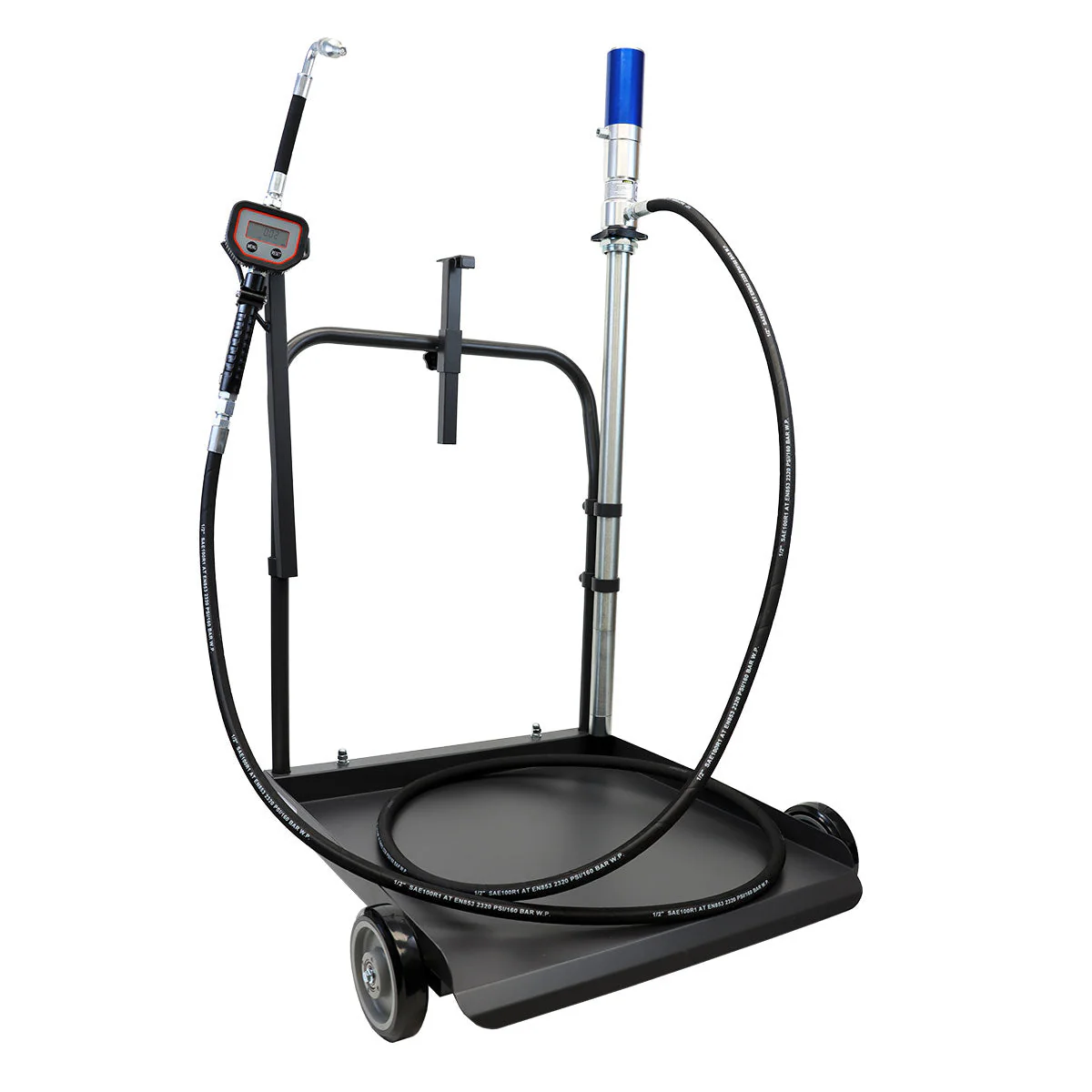

Macnaught M3 Mobile 5:1 High Flow Oil Dispensing Kit
| PUMP SPECS | DIGITAL OIL CONTROL GUN SPECS | TROLLEY SPECS |
|---|---|---|
| Heavy Duty Rated 5:1 Oil Pump | Registers: Quarts, Pints, Gallons, Liters | Heavy Duty Design |
| Air Inlet Operating Pressure: 30-150 PSI | Flow Range: .3 – 9.25 GPM | 48 – 58 Gallon |
| Air Motor Diameter: 2.5″ | Max Pressure: 1500 PSI | Drum, Pump, Gun Holder Included |
| Air Consumption / Min: 2.8 CFM at 150 PSI | Measures all grades of Oils, Coolant & ATF at .5% | Front Swivel Casters |
| Max Fluid Pressure 750 PSI | Flexible 90 degree Spout w Auto Nozzle | |
| Free Flow GPM: 4 | Inlet: 1/2″ FNPT | |
| Suction Tube Diameter: 1 5/8″ | ||
| Suction Tube Length: 37″ | ||
| Adjustable 2″ Bung Adapter | ||
| Air Inlet Connection: 1/4″ FNPT | ||
| Oil Outlet Connection: 1/2″ MNPT | ||
| Hose: SAE 100R1 2320 PSI 13ft x 1/2″ SS Female Swivel |
Features & Benefits:
• Double Acting, Highly Efficient & Light Weight
• Suitable for all oils up to SAE 140W
• Waste Oil, Coolant and ATF compatible
• Each M3 Oil Pump comes with Suction Tube & Filter
• Adjustable 2 inch Bung Adapter
• Minimal Internal Pump Component Design
• 3 Year Warranty
Applications:
Macnaught’s 5:1 Mobile Oil Dispensing Kit data sheet
Instruction Manual: PDF
