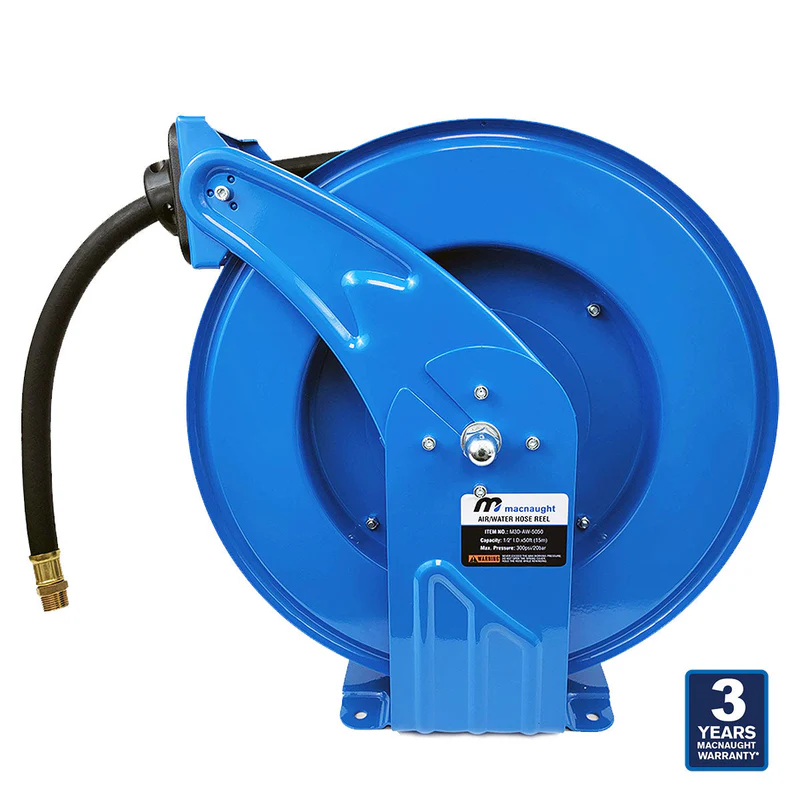

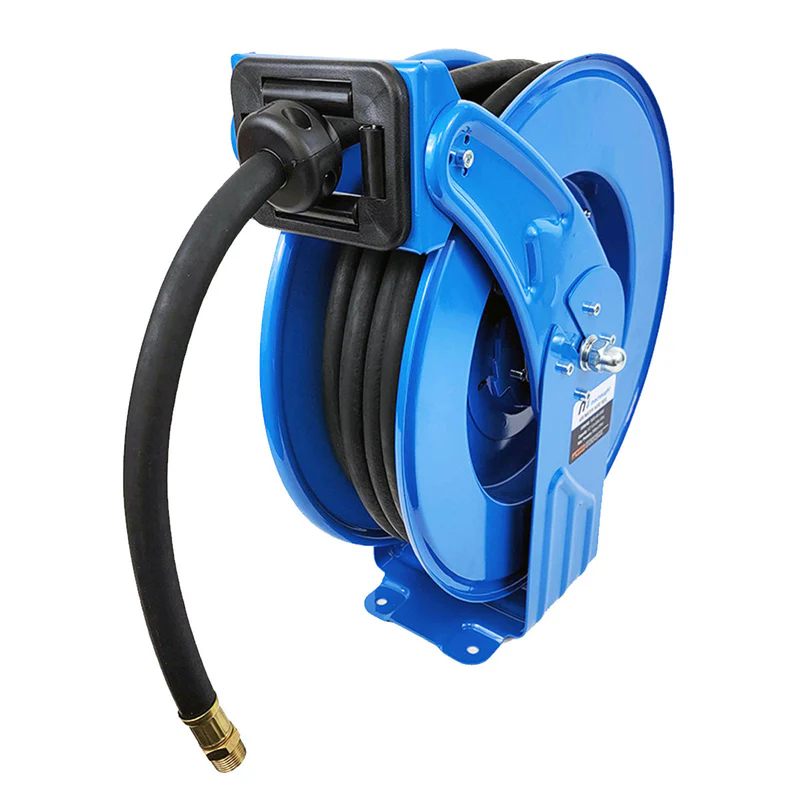

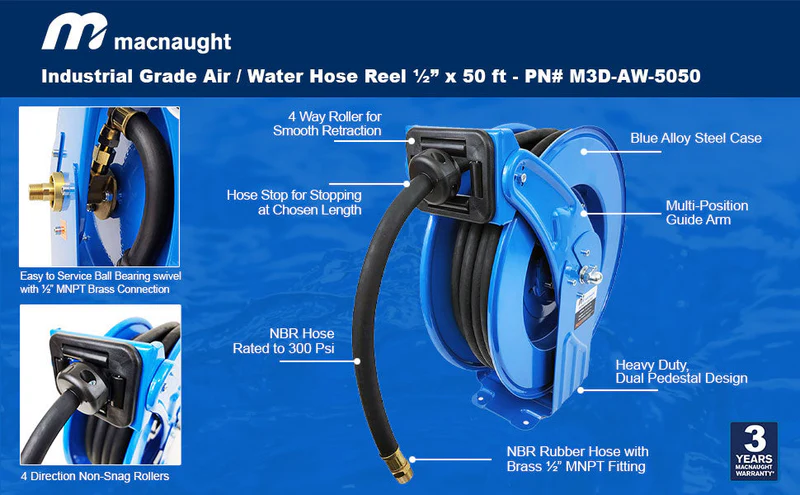

All Macnaught M3 Standard Retraction Air Water Hose Reels are Industrial Grade, Dual Pedestal Design with Heat Treated Heavy Duty Gauge Steel, Reinforced Flanged edges, Easy to Service Ball Bearing swivel with ½” MNPT Brass Connection, 4 Direction Non-Snag Rollers, Adjustable Guide Arms, Premium ½” x 50 ft NBR Rubber Hose with Brass ½” MNPT Fitting, Rated to 300 PSI and suitable for operating in -40F to 176F Water and Air ( only )  applications. Lead Hose is not provided.
Rated for Mobile Truck Mount Applications.

Macnaught M3 Specifications

Description
Retractable Hose Reel for Air / Water

Part No.
M3D-AW-5050

Application
Air / Water

Hose Id
1/2″

Hose Length
50’

WP (psi)
300PSI

Net Weight
46lbs

Case
Blue Alloy Steel

Hose Material
NBR Rubber Hose with Brass ½” MNPT Fitting

Max Temp
-40°F to 226°F

Reel Inlet
1/2” MNPT

Hose Outlet
1/2” MNPT

Warranty
3 Year

Fully Serviceable
√

M3D-AW-5050      Data Sheet: Link
M3D-AW-5050      Instruction Manual: PDF
M3D-AW-5050      Dimensions PDF
