Designed and tested by Macnaught to Retracta standards, the new C1 Series brings you a Retracta for smaller spaces. The new range of C1 Series Hose Reels are 35% smaller than the R3 Series and are ideal for small spaces and compact applications.

The Retracta C1 Hot / Cold Water Hose was designed for space restricted wash down applications and fits in smaller wash down cabinets

INCLUDES 2 YEAR WARRANTY!

Macnaught C1 Retracta Specifications

Description

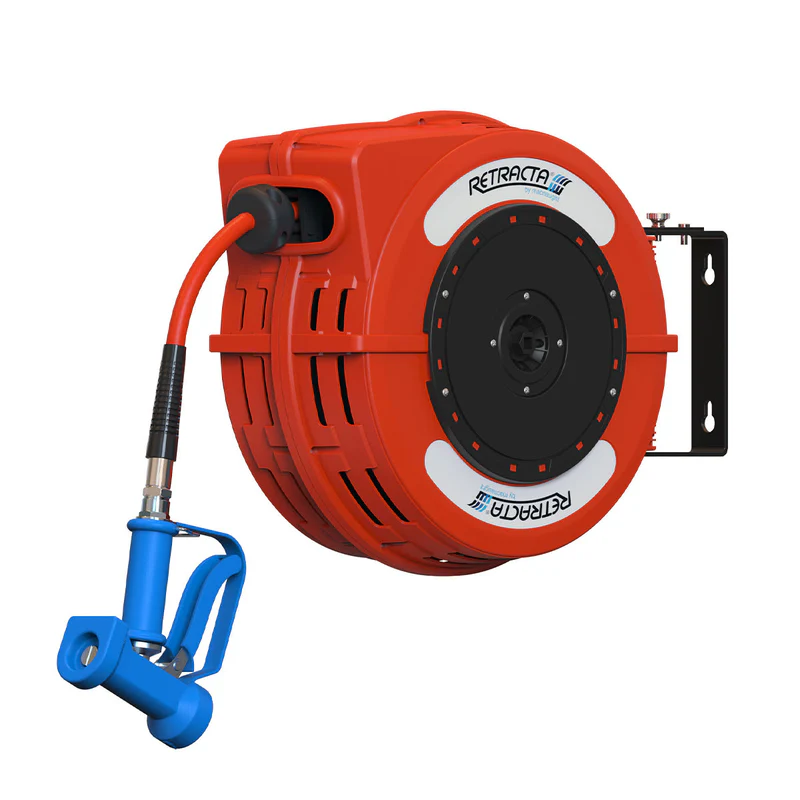

RETRACTA C1 HOSE REEL (RED) – HOT / COLD WATER 1/2″ X 40FT HOSE

Part No.
C1HC440R-06FD-SG

Application
Hot / Cold Water

Hose Id
1/2″

Hose Length
40ft

WP (psi)
300 psi.

Weight
29lbs

Case Colors
Red

Hose Material
Red Retracta FLEX High Temperature Hose

Max Temp (°C)
176°F/80°C

Reel Inlet
1/2”NPT F

Hose Outlet
1/2”NPT M

Feed Hose Length
5ft

Bracket Included

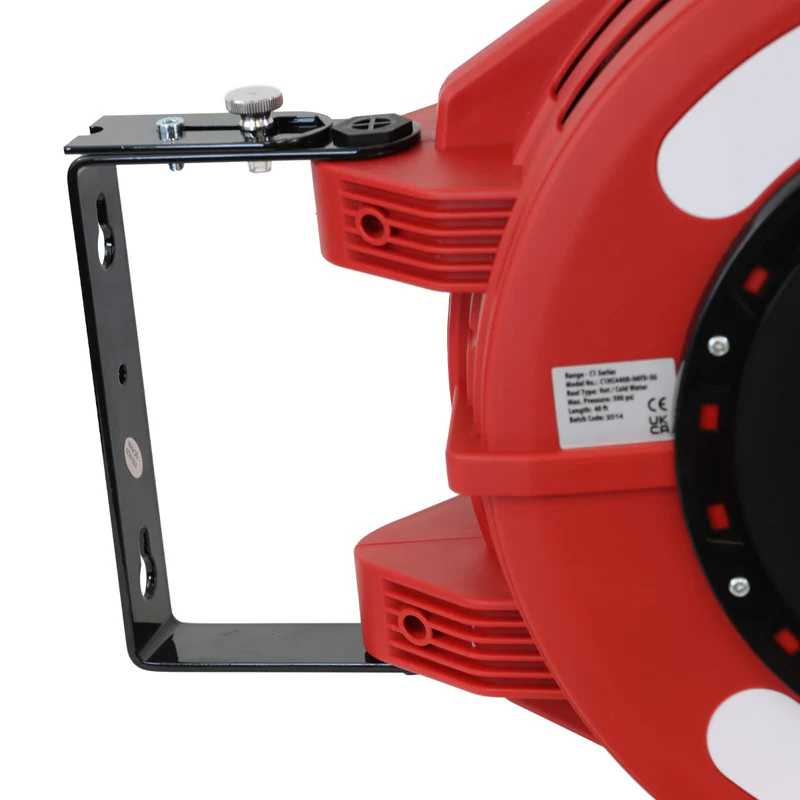

180° Powder coated steel swivel bracket

Features & Benefits

UV Stabilized & resistant polypropylene case
Australian designed and tested
180° Swivel bracket
3 Position Reel swivel locking
Powder coated steel bracket
High Temperature Hose rated to 176°F
Bend Restrictor for increased durability
5ft Feed Hose included

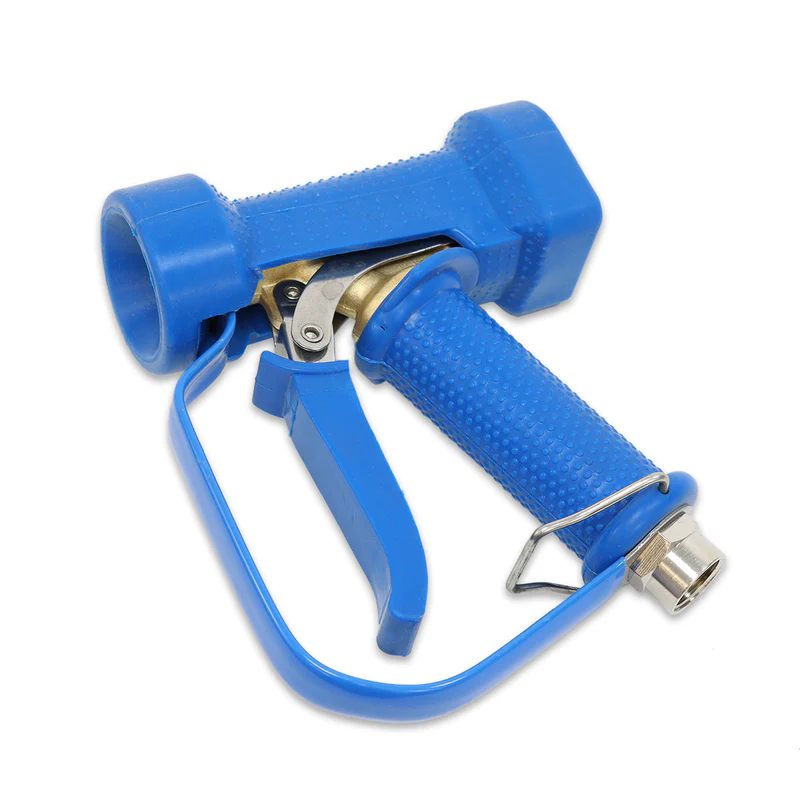

Heavy Duty Hot Water Nozzle included.
2 Year Warranty

Package Includes

Hose Reel – Air / Water
Mounting Bracket
Feed Hose – 5ft
Heavy Duty Hot Wash Nozzle

Retracta C1 Instruction Manual: PDF
