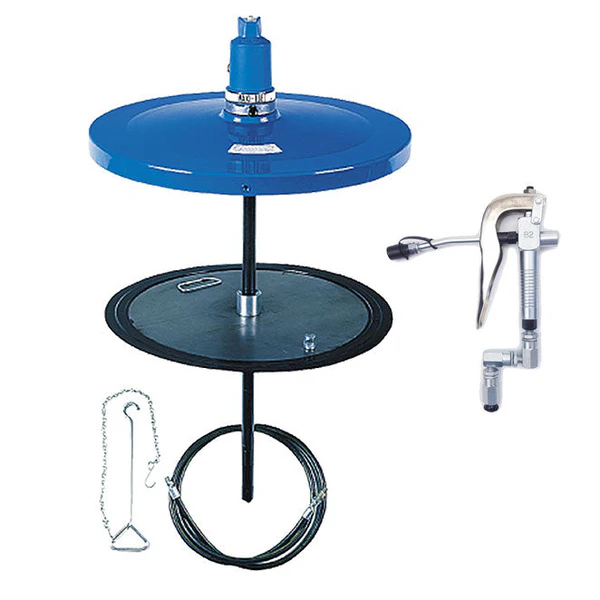

Macnaught’s 50:1 Premium air-operated/pneumatic grease pumps are excellent for high-volume grease applications requiring continuous high-pressure grease output. These portable grease pump systems are engineered for 400 LB/ 205Liter / 55 Gallon containers. They are equipped with a low air consumption motor that doesn’t need to be lubricated due to the use of modern polymer materials. Users will save on power and avoid the oily mist and mess typically associated with air-operated equipment. Macnaught grease pumps are suitable for a wide range of heavy-duty applications and come complete with the industry’s leading 10-year warranty. Includes Booster Gun.
Macnaught P8-11 Specifications
Model number
P8-11 – maxilube®
Pump ratio
50:1 Ratio
Max pump output pressure
7,500 psi / 517BAR
Max gun output pressure
10,000 psi / 689BAR
Bare pump
P8001
Suited to containers
400lb / 205 Liter / 55 Gal.
Hose
8ft x 1/4in ID delivery hose (2.5m x 6mm)
Control gun
B2 Booster Gun with ZSB swivel
Output at gun
16 oz/min (460 g/min)
Airline Lubricator
Not required
Fully serviceable
✔
Warranty
10 years
Parts guarantee
10 years
Grease viscosity
Up to NLGI No.2
Wetted components
Zinc, Hard Chrome-plated Carbon Steel, Brass, Nitrile and Polyurethane Rubber
Max air pressure
150 psi
Min air pressure
60 psi
Air inlet
1/4″ NPT (F)
Pump Outlet
1/4″ NPT (F)
Min compressor size
3 cfm (0.08m³/ min)
Macnaught P8-11 Data Sheet: PDF
Macnaught P3-P6-P8 Air Operated Grease Pumps Instruction Manual: PDF
Macnaught P3-01C Features and Benefits
Industry Leading 10-year Warranty
Zinc components – For underground mining applications
50:1 ratio air motor delivers up to 16 oz/min of fast, efficient grease output
Non-corroding air motor design – No airline lubricator required. Easy and low cost to repair
Quiet air motor design – Meets all industry noise level standards
8’ ft high-pressure grease hose – Extra hose length for easier access to difficult applications
B2 Booster Gun – Boosts greasing pressure up to 10,000 psi
360° ZSB Swivel – Improves greasing flexibility and offers easier one-handed operation
KY Supergrip three-jaw high-pressure coupler – Positive no leak connection
Rubber-edged follower plate – Prevents air pockets and contamination
Fully sealed greasing system with built-in grease strainer – Clean grease delivery every time
Fully repairable – Provides a longer service life
REPAIR KITS/Accessories
P3-5K: Pump Seal Kit
P3-3k: Seal Kit
P3-1K: Air Motor Seal Kit
PA30s: Valve Body Complete
TR205: Safety Trolley
