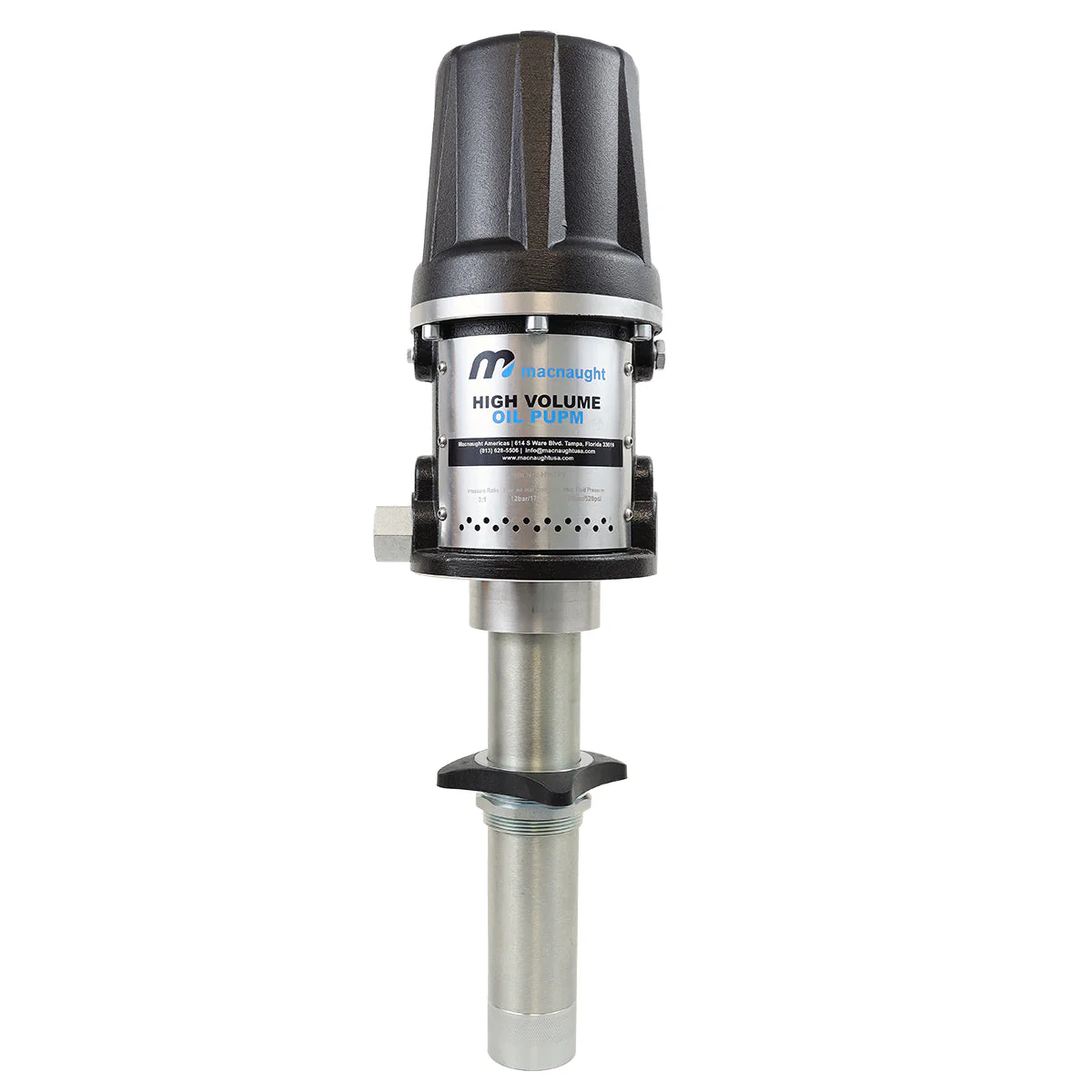

Macnaught M3 HVOP3 Oil Pump Specifications
| Model number | HVOP3 |
| Pump ratio | 3:1 ratio |
| Pressure | 70 – 175 PSI / 483 – 1026 kPa |
| Max Fluid Pressure | 520 PSI / 3586 kPa |
| Air Motor Diameter | 3″ |
| Air Consumption | 7.6CFM @115psi / 793 kPa |
| Free Flow | 11.9 GPM / 45 LPM |
| Suction Tube Inner Diameter | 1 3/4″ |
| Suction Tube Outer Diameter | 2 1/8″ |
| Suction Tube Length | 10 5/8″ |
| Air Inlet | ¼ inch FNPT |

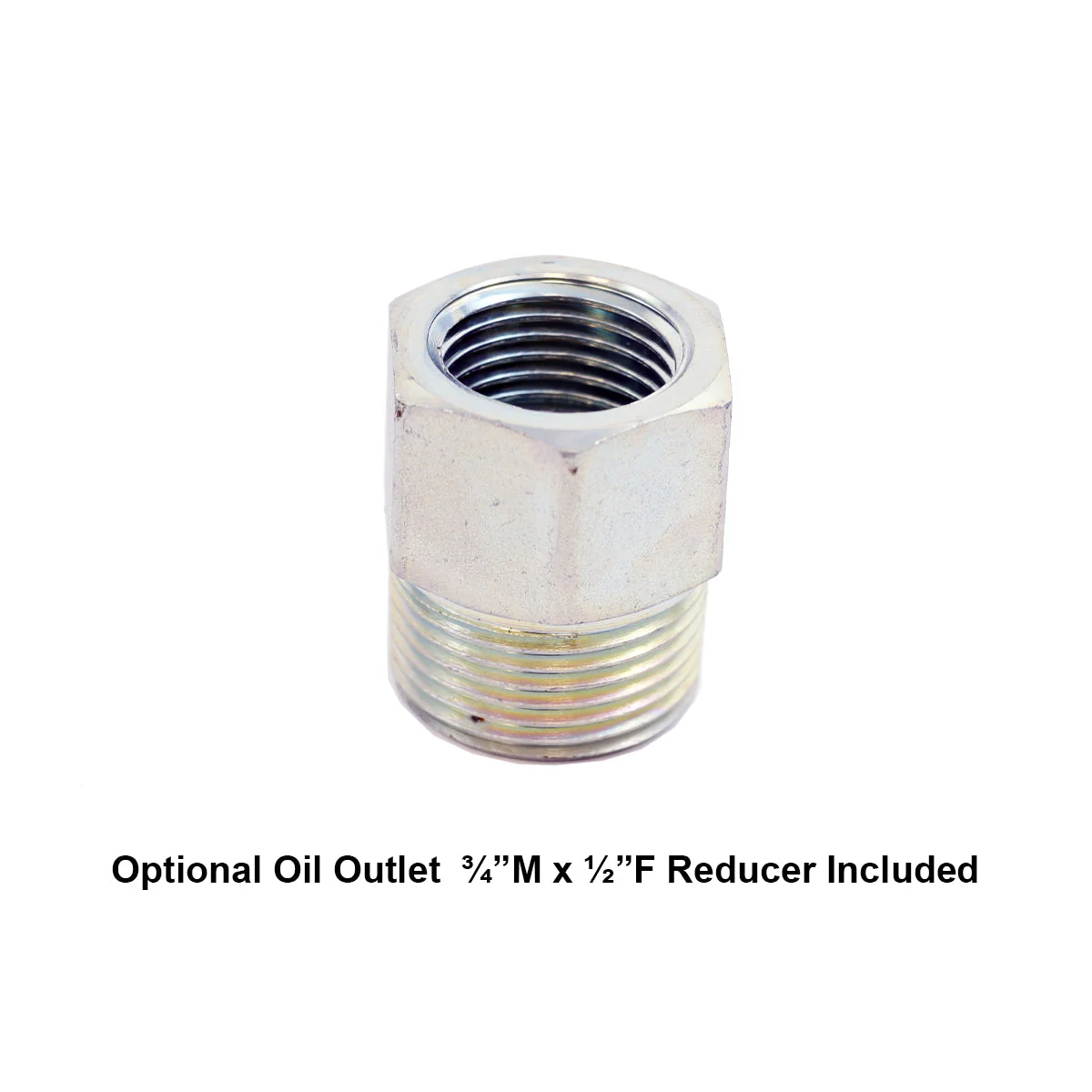

| Oil Outlet | ¾ inch FNPT with free ½” F Reducer provided |

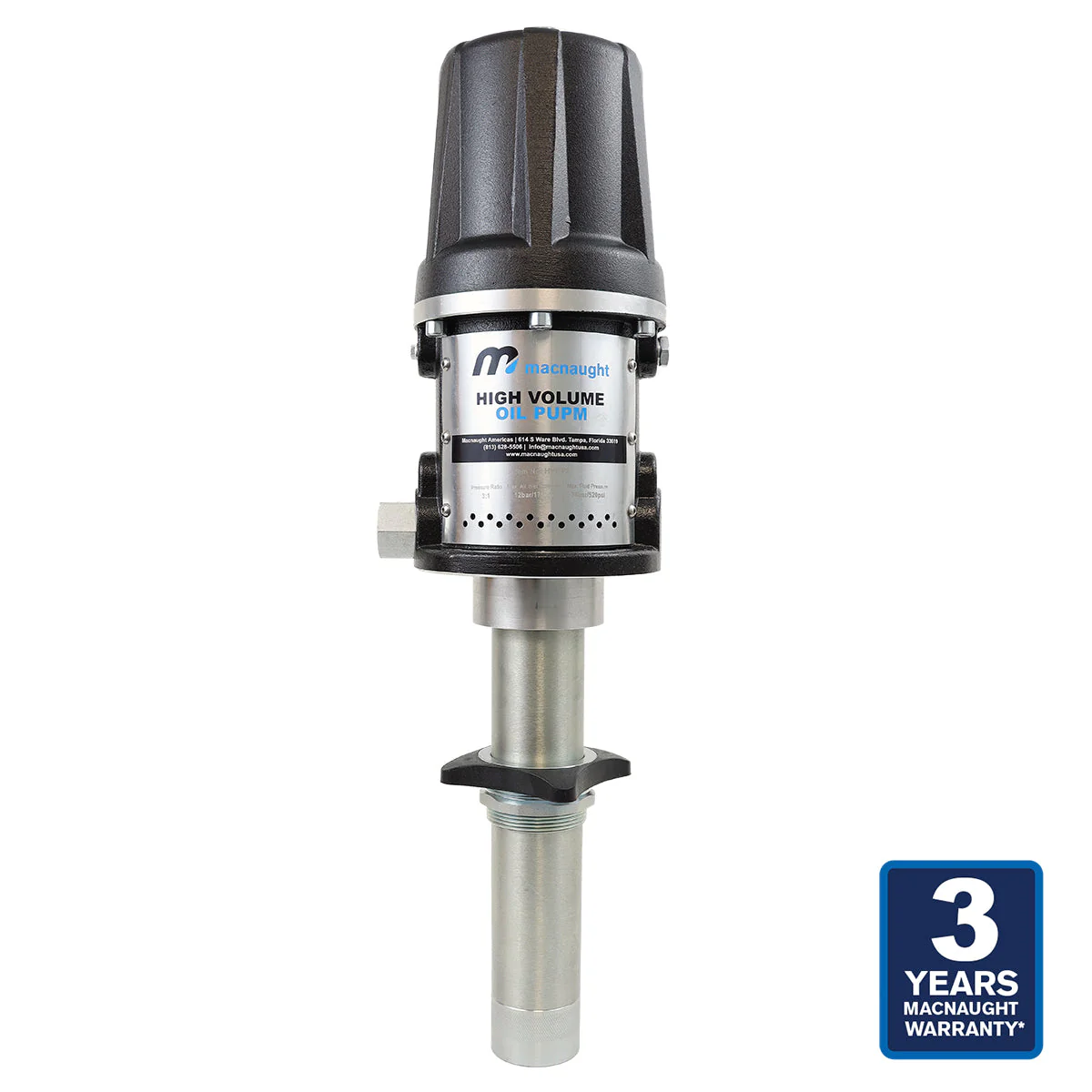

| Warranty | 3 years |
ST27 Suction Tube for 55 Gallon Drums 37” Total length: ST27
ST37 Suction tube for 275 Gallon Totes 47” Total length: ST37
Instruction Manual: PDF
