Rigid Nozzle Oil Delivery Gun, NPT.

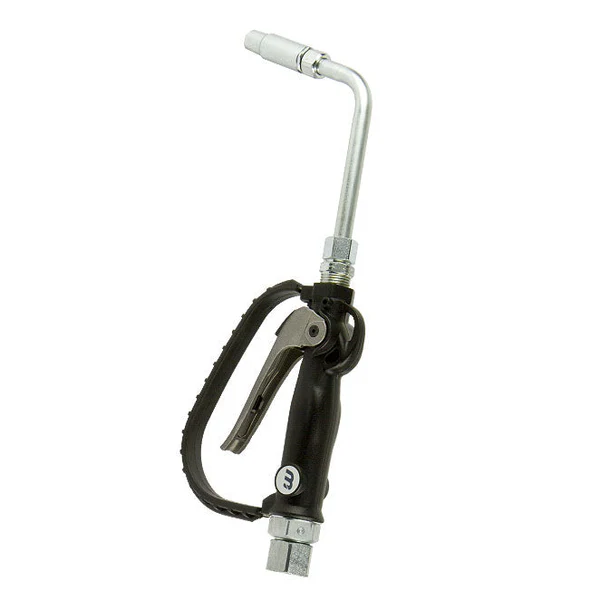

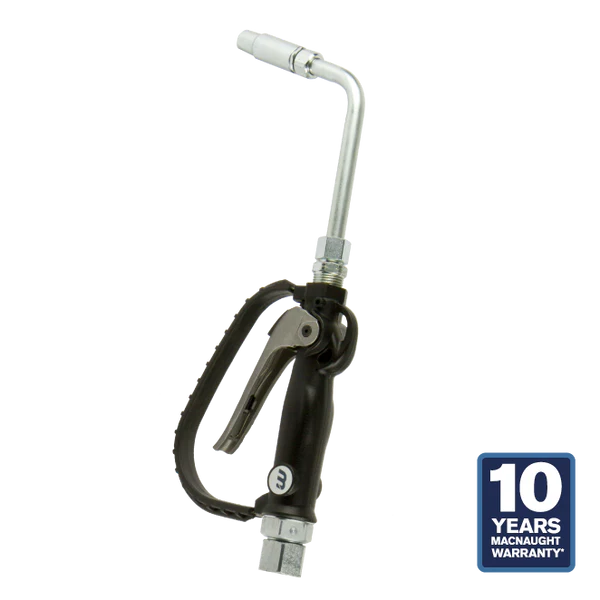

Macnaught offers the HG20R-02 unmetered oil control with a rigid extension and automatic non-drip nozzle. It comes with a trigger guard, latching trigger and is fully serviceable. With a ½ inch NPT inlet and maximum working pressure up to 1000 psi (6900kPa) this gun delivers a flow rate of up to 8 gpm / 30 lpm. Used for oil, ATF and antifreeze up to a maximum viscosity of SAE 140.
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02
Macnaught Metered Control Gun Specifications
Model number
HG20R-02
Flow Range
up to 8gal(30L)/min
Inlet Swivel
1/2″ NPT (F)
Meter
X
Meter Accuracy
X
Max working temp
150°F / 70°C
Extension
Rigid
Non drip nozzle
Automatic
Latching Trigger
√
Fully Serviceable
√
Warranty
10 years
Parts Guarantee
10 years
Compatible Fluid
Engine and gear oils up to SAE140, auto
trans and hydraulic fluid
Max Working Pressure
1000psi (6900kPa)
Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF
Features & Benefits:
Auto Non-Drip Nozzle
Rigid extension
1/2″NPT swivel inlet
Trigger guard
Trigger lock
Fully serviceable
