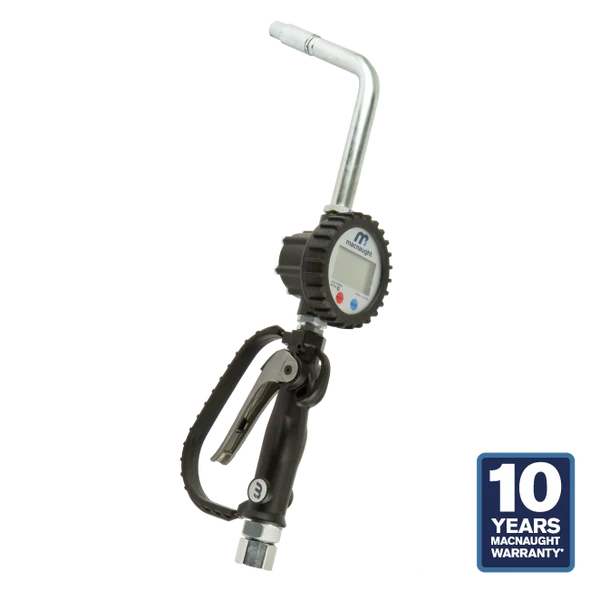

Metered Control Gun HG20 & IM012E, 1/2″ NPT inlet, rigid extension, auto shutoff nozzle, handle guard, 8 GPM/30 LPM flow rate, 1000psi.

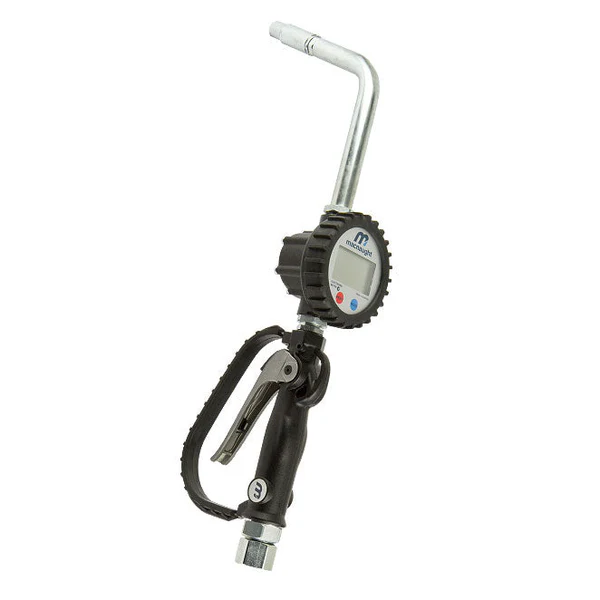

Macnaught offers the HG20R-012E-02 highly accurate electronic metered oil control with a rigid extension and automatic non-drip nozzle. The meter features a 6-digit totalizer and resettable batch total. It comes with a trigger guard, latching trigger and is fully serviceable. With a ½ inch NPT inlet and maximum working pressure up to 1000 psi / 6900kPa. this gun delivers a flow rate of up to 8 gpm / 30 lpm. Used for oil, ATF and antifreeze up to a maximum viscosity of SAE 140.

INCLUDES 10 YEAR WARRANTY!

Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02

Macnaught Metered Control Gun Specifications

Model number
HG20R-012E-02

Flow Range
up to 8gal (30L)/min

Inlet Swivel
1/2″ NPT (F)

Meter
Electronic

Meter Accuracy
+/-0.5%

Features
6 digit totalizer

Extension
Rigid with non-drip nozzle

Non drip nozzle
Automatic

Latching Trigger
√

Fully Serviceable
√

Warranty
10 years

Parts Guarantee
10 years

Compatible Fluid
engine, gear, ATF, hydraulic oils up to SAE140 viscosity & anti-freeze/anti boil

Max Working Pressure
1000psi (6900kPa)

Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF

Features & Benefits:

Digital meter accurate to +/- 0.5%
6-digit totalizer
Auto Non-Drip Nozzle
Rigid extension
1/2″NPT swivel inlet
Trigger guard
Trigger lock
Fully serviceable
