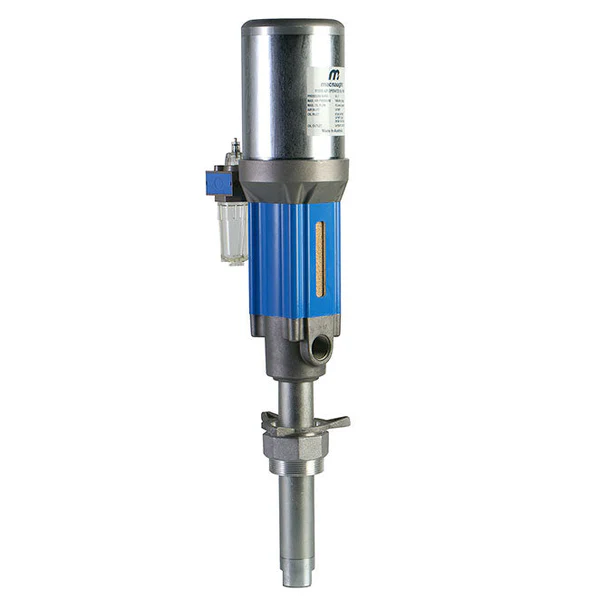

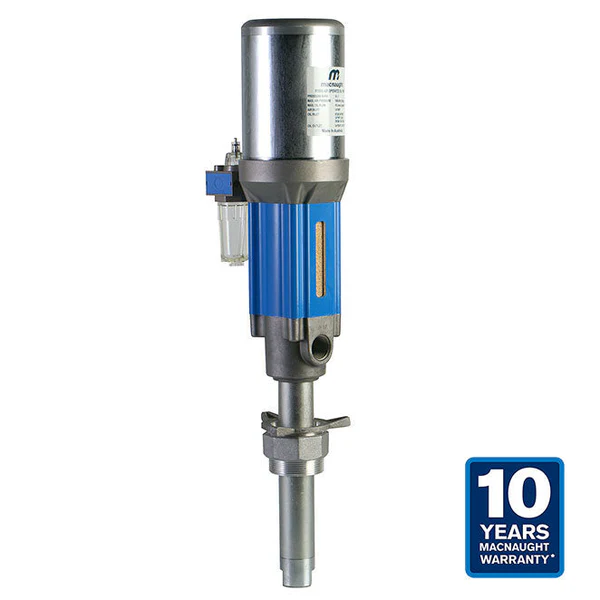

Macnaught M3 Series 5 to 1 - 205 Liter / 55 Gallon Air Operated Oil Pump
Macnaught M3 Series 5 to 1 - 205 Liter / 55 Gallon Air Operated Oil Pump
Macnaught M3 Series 5 to 1 - 205 Liter / 55 Gallon Air Operated Oil Pump
$2,178.00
Macnaught Air Operated Oil Pump Specifications
| Model number | R1000S-02 |
| Pump ratio | 10:1 ratio |
| Output SAE 10* | 4.7gal (18L)/min |
| Output SAE 15W-40″ | 4.5gal (17L)/min |
| Output SAE 90* | 4gal (15L)/min |
| Maximum Static Head | 328ft (100m) |
| Airline lubricator | √ |
| Pressure relief valve | X |
| 2″ Bung adapter | √ |
| Fully serviceable | √ |
| Warranty¹ | 10 years |
| Parts guarantee² | 10 years |
| Compatible fluids | Engine and gear oils up to SAE140, auto trans, hydraulic fluid, diesel |
| Min-Max air pressure | 60/150psi (400-1030kPa) |
| Min air compressor | 18cfm/min (.5m³) |
| Air inlet | 1/4″ NPT(F) |
| Pump outlet | 3/4″ NPT(F) |
| Pump inlet | 1″ BSP(F) / 1″ NPT (F) |
Features & Benefits:
Value Proposition:
The R series pumps are high quality, heavy duty, reliable oil pumps. The ideal choice for remote mount or integration into oil systems. The strong metal construction provides maximum performance and long service life.
