Macnaught Portable 1 Gallon Foot Operated Grease Pump – PN# K7

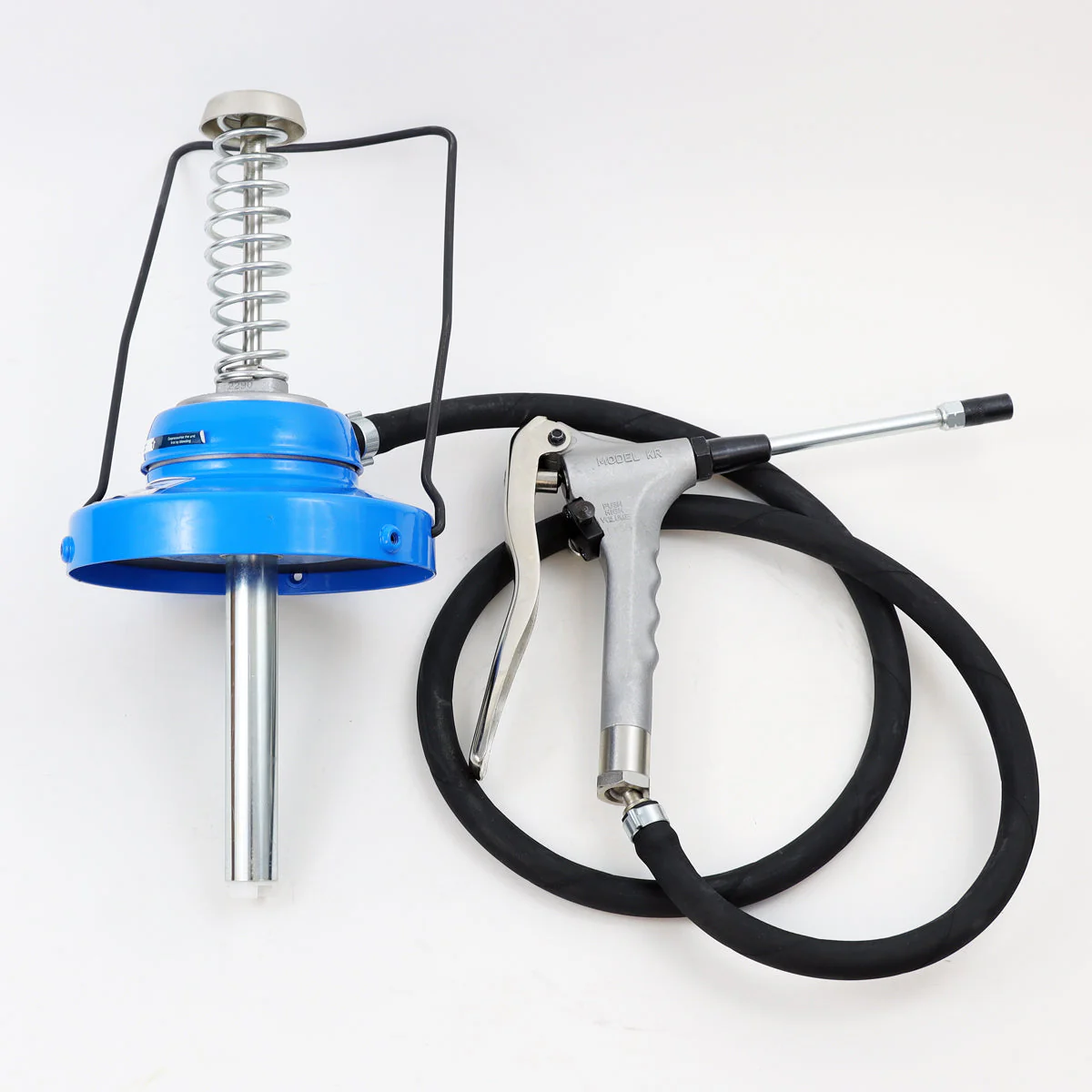

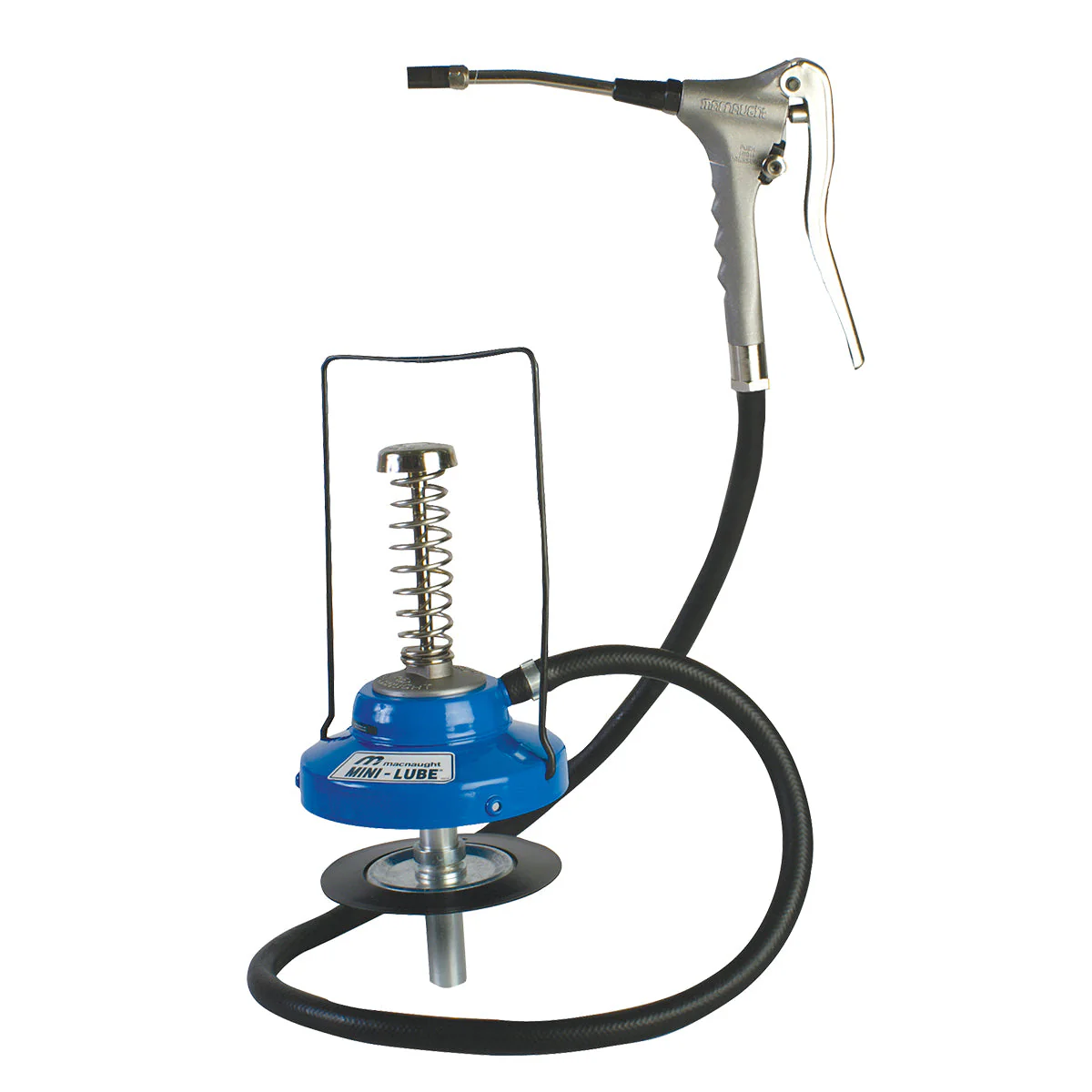

The K7 MINILUBE® Portable High-Pressure Manual Grease Pump System provides high-volume/high-pressure greasing in a compact and portable package. It consists of two main components, a foot-operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the “high volume” position the gun will deliver up to 5,000 psi and when set on the “high pressure” setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7 manual grease pump is an economical alternative to the more expensive air-operated greasing systems.

Features & Benefits

Manual Greasing System
Lightweight and portable go-anywhere design

KR Pressure Gun
Choose between high pressure or high volume setting

KY SUPERGRIP™ Coupler
The positive no-leak connection ensures grease reaches the bearing

High-Pressure Setting
Produces up to 10,000psi (68,900kPa) of pressure

High Volume Setting
Delivers up to 1.25g grease per shot

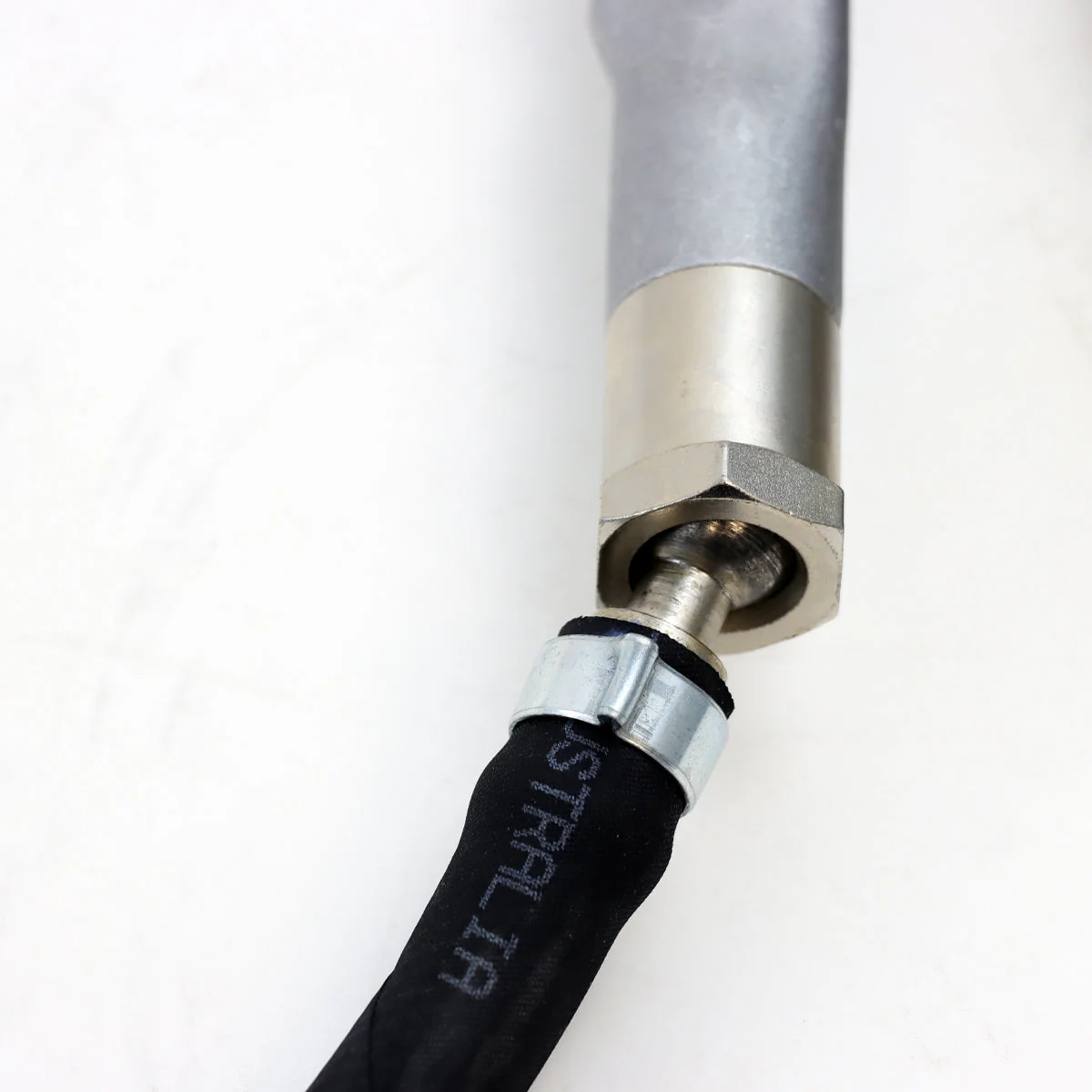

360º Ball Swivel
Prevents hose from kinking

Foot Operated Pump
Provides 30 shots per prime

Rubber-edged Follower Plate
Wipes container clean & prevents air pockets & contamination

Fits 1LB Containers
Container not included

Fully Repairable
Provides a much longer service life – includes an honest 10-year Warranty

Fully Sealed System
With inbuilt grease, strainer prevents grease contamination

5 FT Delivery Hose
Easy to reach difficult applications

Macnaught K7 Instruction Manual: PDF
