$974.00

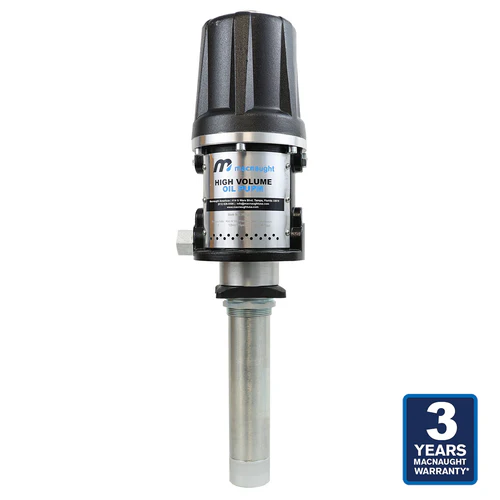

Macnaught M3 Air Operated Oil Pump Specifications
| Model number | HVOP5 |
| Pump ratio | 5:1 ratio |
| Pressure | 70 – 175 PSI / 482 – 1206 kPa |
| Max Fluid Pressure | 870 PSI / 6000 kPa |
| Air Motor Diameter | 3″ |
| Air Consumption | 8.6CFM @115psi / 792 kPa |
| Free Flow | 10.6 GPM / 40 LPM |
| Suction Tube Inner Diameter | 1 3/4″ |
| Suction Tube Outer Diameter | 2 1/8″ |
| Suction Tube Length | 10 5/8″ |
| Air Inlet | ¼ inch FNPT |

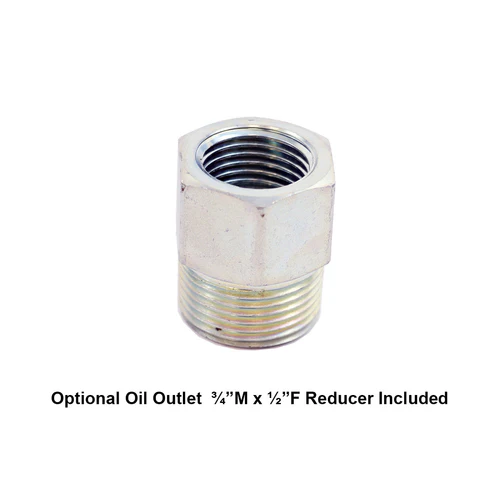

| Oil Outlet | ¾ inch FNPT with free ½” F Reducer provided |
| Warranty | 3 years |
Suction Tubes ( not included with above stub pump )
ST27 Suction Tube for 55 Gallon Drums 37” Total length ST27
ST37 Suction tube for 275 Gallon Totes 47” Total length ST37
Instruction Manual: PDF
