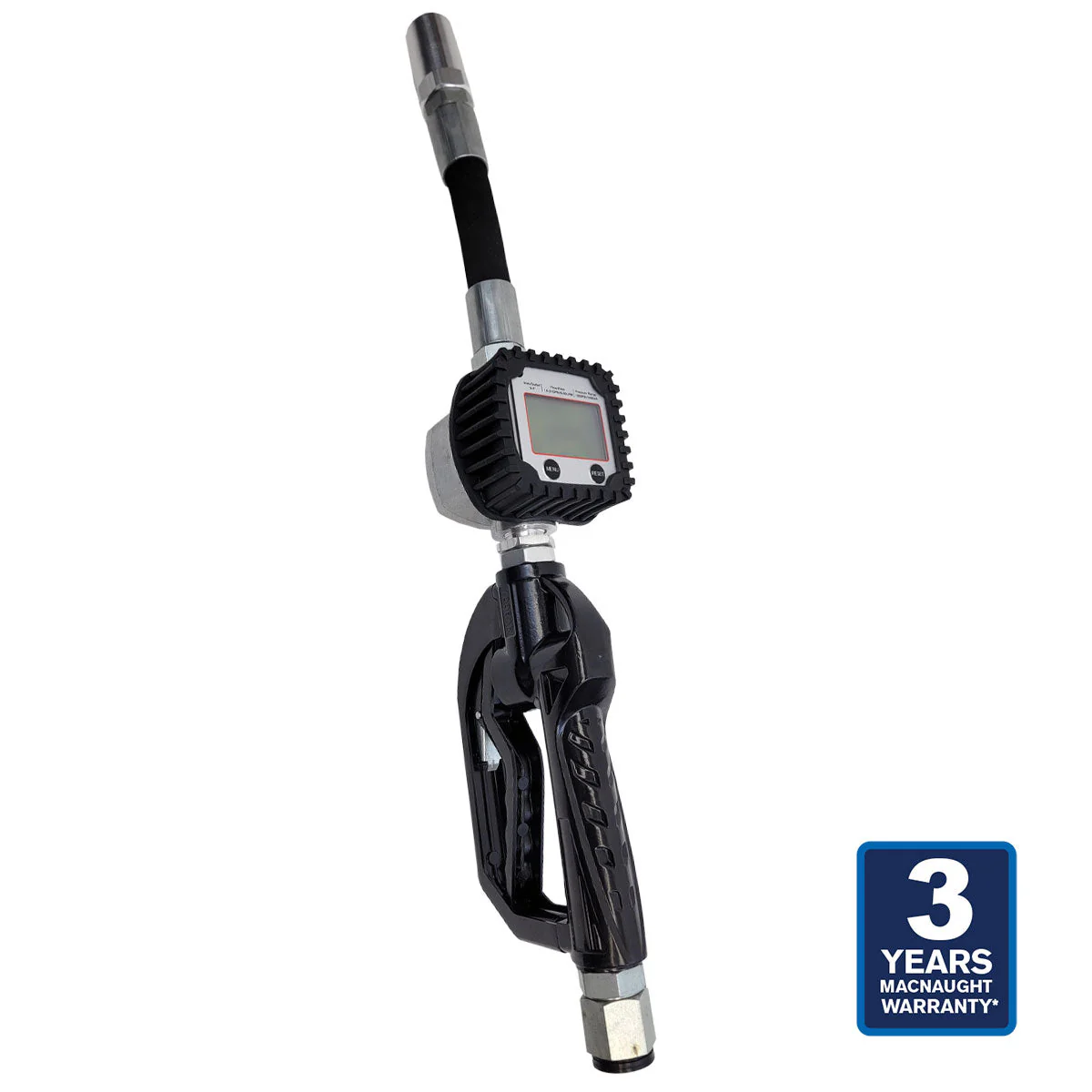

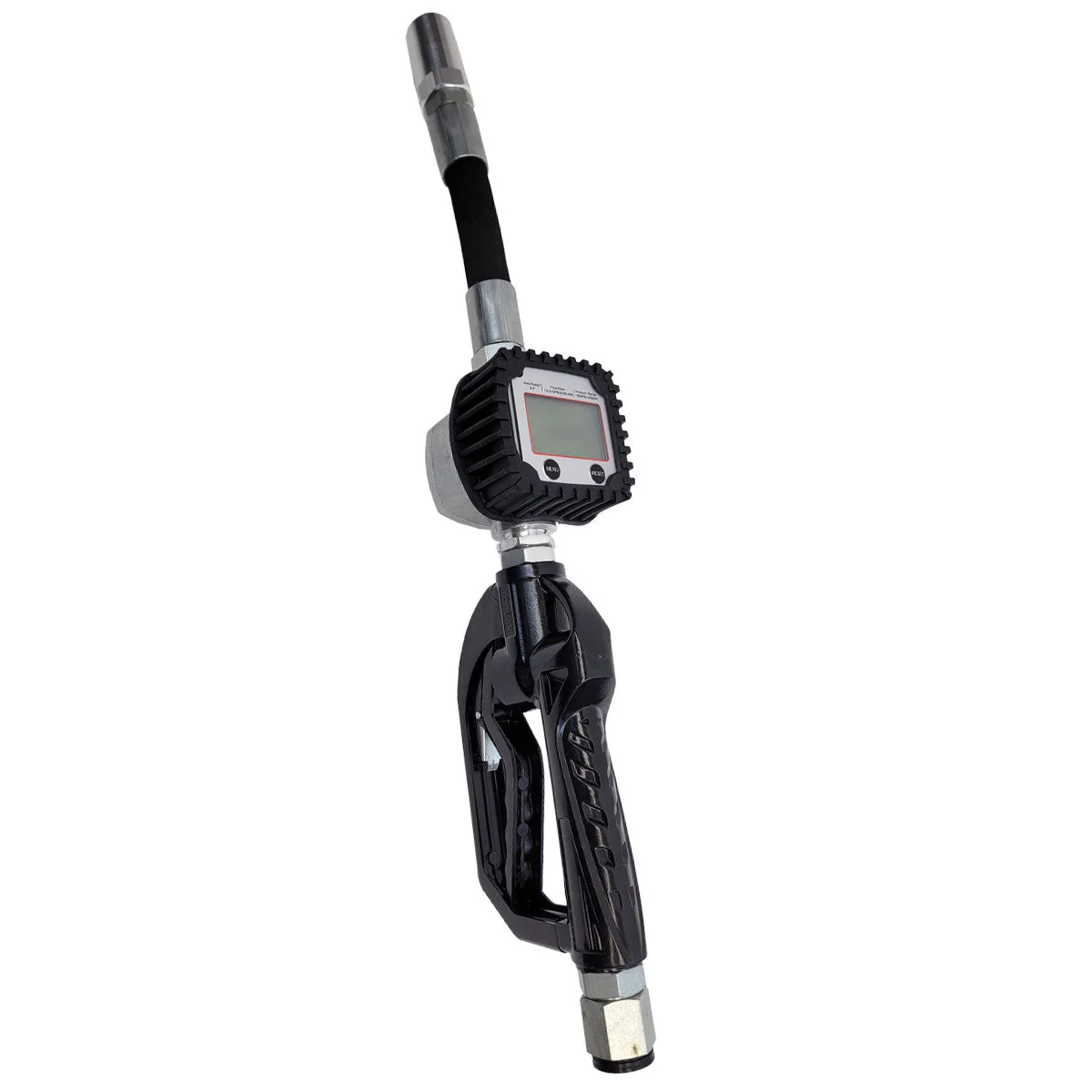

Digital Meter Oil Control Gun OCVMHF-001
Digital Metered High Flow Oil Gun with flexible extension, non-drip auto nozzle. 3/4” FNPT connection
Macnaught’s M3 OCVMHF-001 Digital Oil High Flow Control Gun delivers high flow with oval gear digital meter accuracy. Designed for hi-flow, high-use industrial applications, this product comes with a leading 3-Year Warranty. Perfect for Oils up to 140W as well as ATF, Diesel & Coolant for flow rates up to 21 GPM at 725 PSI / 5000 kPa. Easy to operate digital screen that registers in Quarts, Gallons, Pints and Liters. The measuring principle is Oval Gear and produces .5% Accuracy of Flow.
INCLUDES 3 YEAR WARRANTY!
Frequently bought with M3 3/4″ Oil Hose
Macnaught M3 Control Gun Specifications
Model number
OCVMHF-001
Flow Rate
.3 – 21 GPM / 1- 80 LPM
Max. Pressure
725 PSI / 5000 kPa
Connection
3/4-inch FNPT
Extension
Flexible with Non-Drip Auto Nozzle
Battery
2 x (AAA)
Trigger
Lockable
Temp Limits
14F to 140F / -10C to 60C
Display
5 Digit Resettable and 7 Digit Non-Resettable
Totalizers
Resettable & Non-Resettable
Warranty
3 years
Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF
Macnaught Metered Control Gun Applications
Automotive
Truck and Bus
Military
Construction
Earthmoving
Mining
Aviation
Agriculture
Trains
Value Proposition:
Accurate control and measurement of oil usage.
