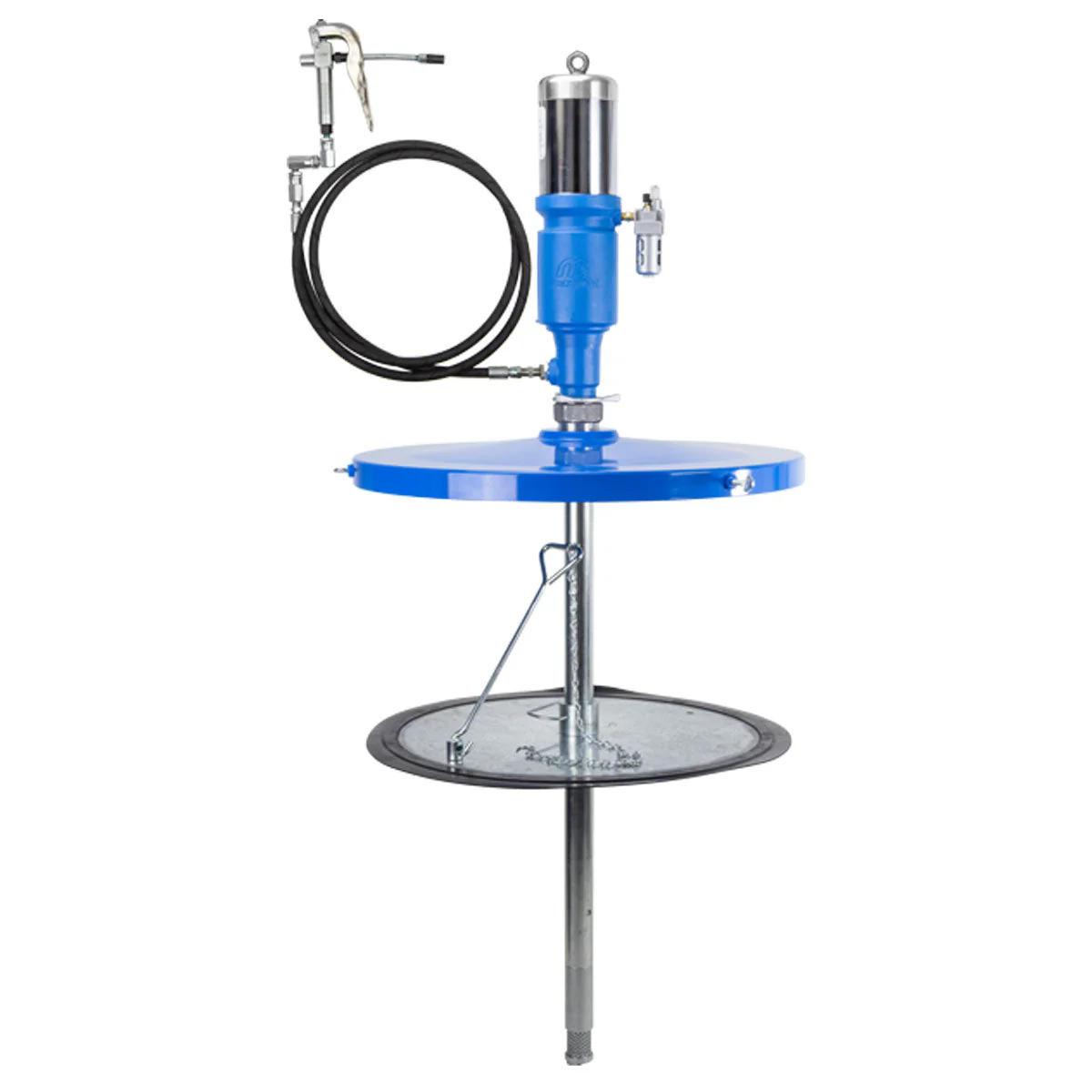

The P58 Maxilube is the latest high performing heavy duty air operated grease pump manufactured by Macnaught. Designed, engineered and manufactured in Australia, the P58 now provides you with a high performing, high pressure grease pump with booster gun along with the Macnaught performance reliability and service. Macnaught air powered grease pumps are suitable for heavy-duty applications and comes with the industry’s leading 10-year warranty.
This high flow grease pump is fitted with a 58:1 ratio air motor and is designed to fit 180kg / 205 Liter / (400lbs) grease containers. With a grease output of up to 6.8kg per minute (free flow), it is ideal for large system installations such as service bays.
Macnaught P58PGLF-01 Specifications
Model number
P58PGLF-01
Pump ratio
58:1 Ratio (grease pressure is 58 times air pressure)
Air Pressure Operating Range
60 to 150psi
Air Consumption
23.5 SCFM (@120psi pressure, 20°C)
Max Fluid Outlet Pressure
8700psi (59, 900 kPa)
Air Motor Diameter
4.1″ (104.7mm)
Max free Flow Delivery Rate
13lb/min
Air Inlet Size
1/4″ NPT
Fluid Outlet Size
3/8″ NPT
Wetted and Seal Materials
NBR
Noise Level
85 dB(A) (@120 psi)
Air Lubricator Included
Yes
Parts guarantee
10 years
Grease viscosity
Up to NLGI No.2
Pump Tube Diameter
41.3 mm O.D.
Pump tube height
960 mm
Weight
25.5kgs
Hose
2.5m x 6mm ID Delivery Hose
Control Gun
B2 Booster Gun with Z Swivel
Lid & Follower (180 Kgs)
Lid and Follower – 180Kgs (P58LF-01)
Macnaught P58PGLF-01 Data Sheet: PDF
Macnaught P58PGLF-01 Operations Manual: PDF
Macnaught P58PGLF-01 Features and Benefits

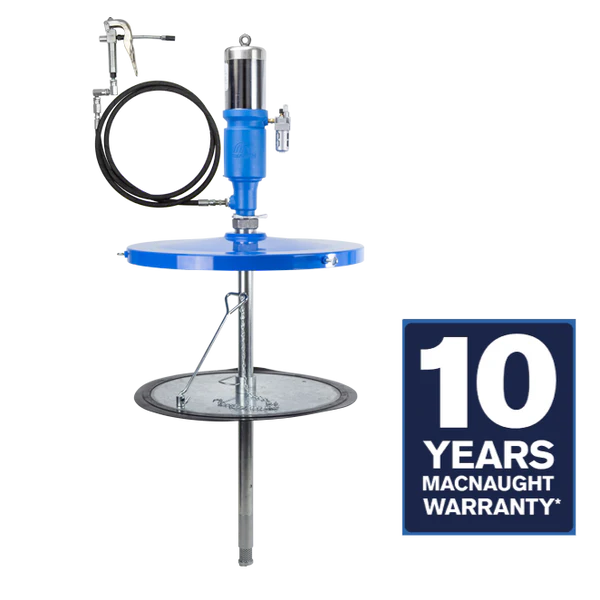

Industry Leading 10-year Warranty
Zinc components – For underground mining applications
58:1 ratio air motor delivers 13 pounds of grease free flow
Quiet air motor design – Meets all industry noise level standards
8’ ft high-pressure grease hose – Extra hose length for easier access to difficult applications
B2 Booster Gun – Boosts greasing pressure up to 8700 psi
360° ZSB Swivel – Improves greasing flexibility and offers easier one-handed operation
KY Supergrip three-jaw high-pressure coupler – Positive no leak connection
Rubber-edged follower plate – Prevents air pockets and contamination
Fully sealed greasing system with built-in grease strainer – Clean grease delivery every time
Fully repairable – Provides a longer service life
