Bulk Fill Grease Pump System
An economical solution for refilling standard grease guns and pumps from larger bulk pails. The standard J3 fills Macnuaght’s range of hand, air-powered guns and mini-lube KT5 and KT6 containers. Since 1948, Macnaught Grease conveyance have been built to support the harsh Australian mining industry. Since then, our products have surpassed the toughest mining, automotive, trucking, marine, heavy equipment, municipal & aviation lubrication shop expectations – globally. Flexigun, Levergun and Grease Transfer Pump models available. All of our grease conveyance products carry the industry’s longest warranty – 10 years. For the very best cost of ownership, Macnaught products will provide years of trouble-free service – we guarantee it!
Attachment Grease Bulk Fill Nozzle Assembly – PN# J65
J3-01 Grease Transfer Pump Outlet Hose – PN# KH42S

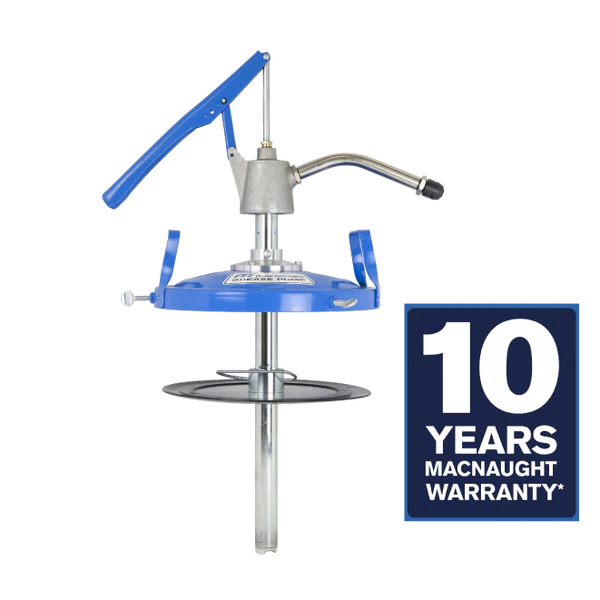

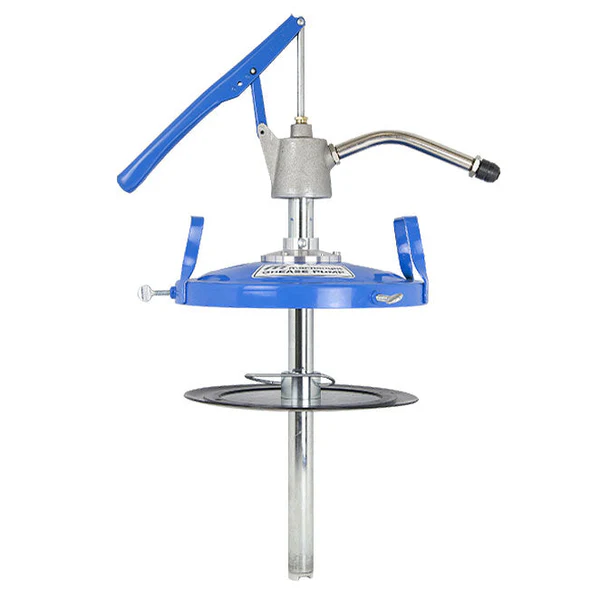

Macnaught J3-01 Specifications
Model number
J3-01
Description
Manual Transfer Pump
J65 bulk fill nozzle
✔
Fully serviceable
✔
Extension
Rigid
Suited to pails
44lb/20kg
Output volume
2oz per stroke/54g
Max grease type
NLGI No.2
Warranty
10 years
Macnaught J3-01 Data Sheet: PDF
Macnaught J3-01 Instruction Manual: PDF
Macnaught J3-01 Features and Benefits
Grease output is 54 grams per stroke up to NLGI 2 grease
Industry leading 10-year warranty
Heavy-duty, stepped barrel for long service and easy grip
Robust zinc handle
Filler bleeder opens by hand with no tools
Screw fasteners for easy servicing – no rivets
Machined barrel threads screw on easily to head
Lock the plunge rod into the follower for easier bleeding
