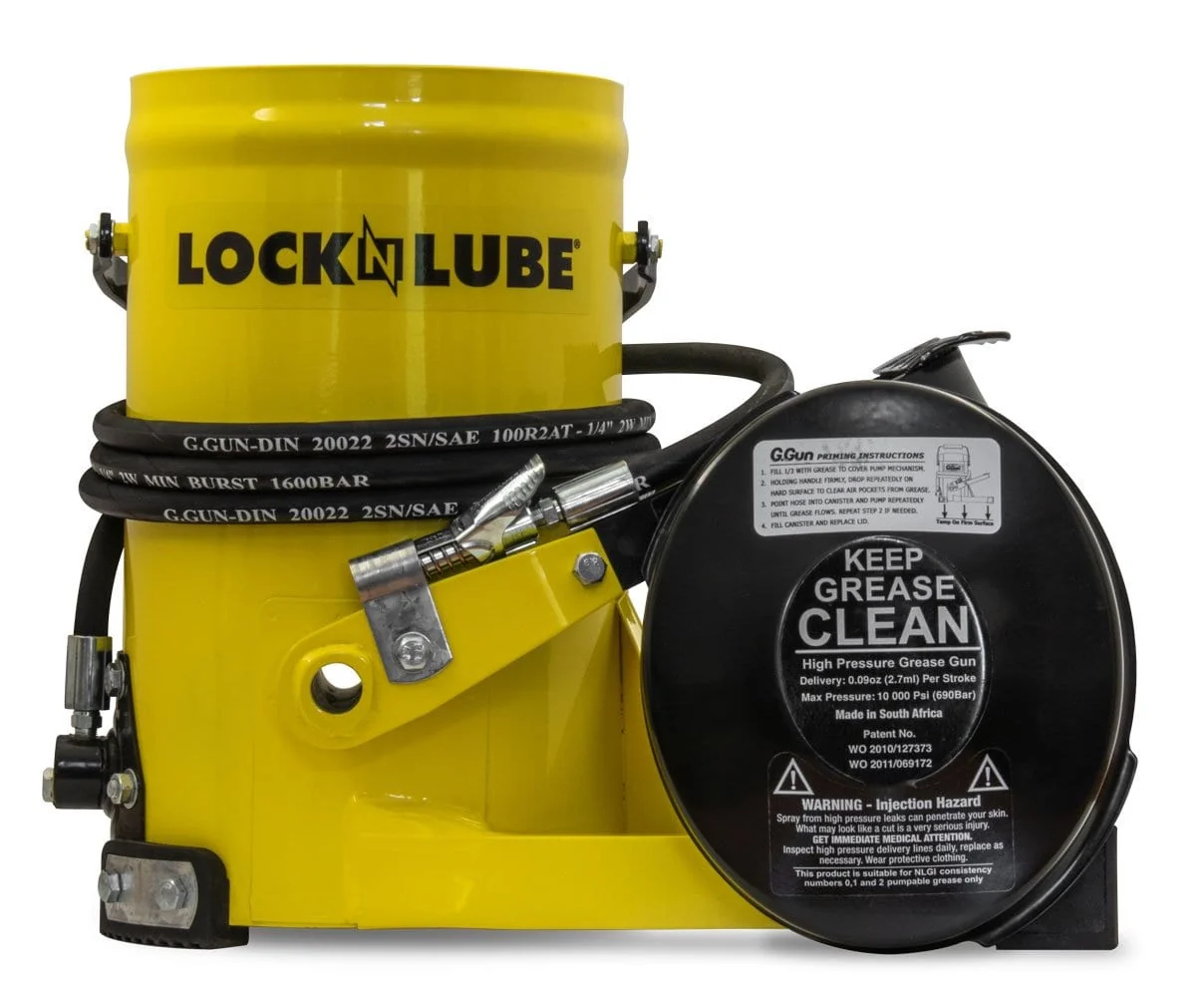

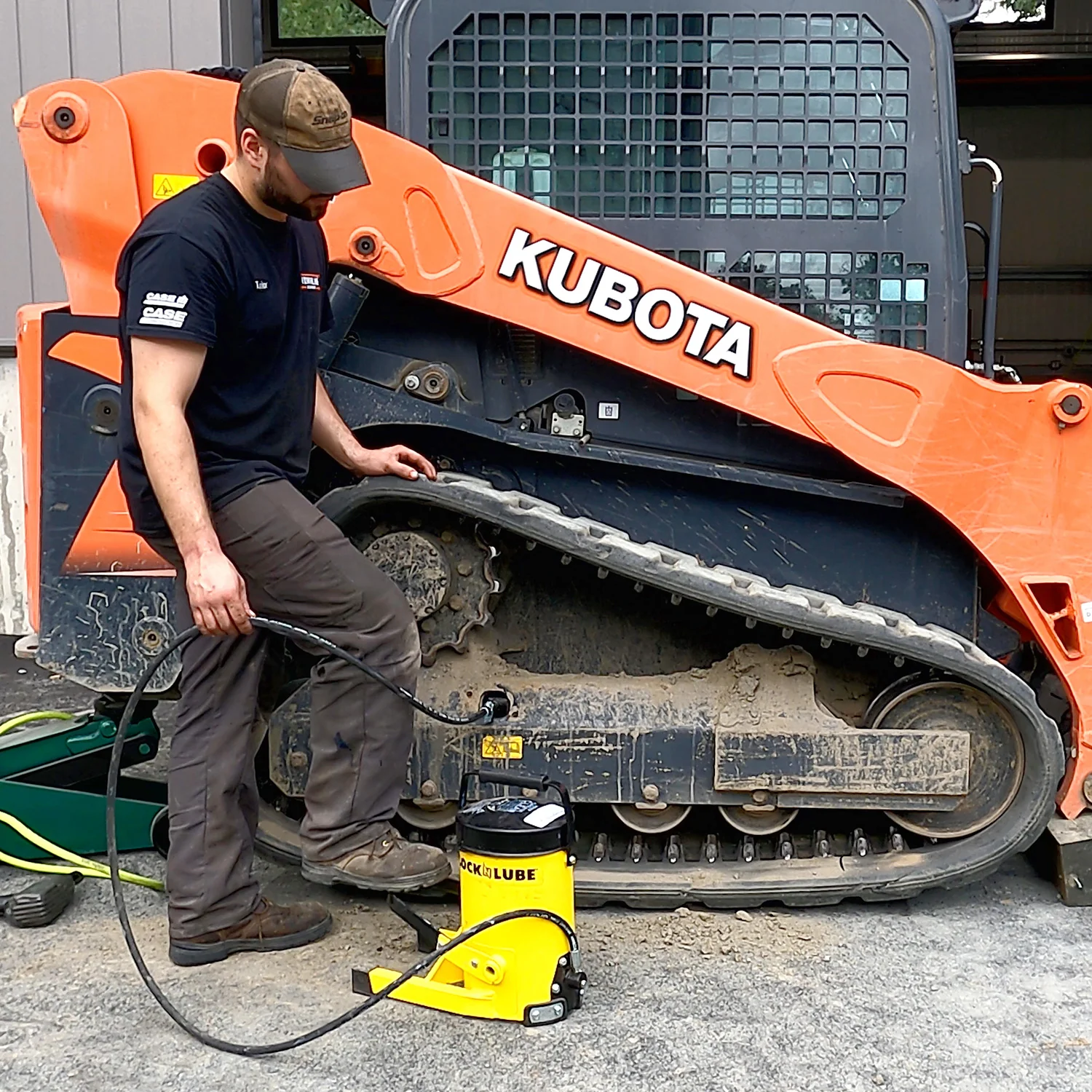

This grease gun is industrial strength. Able to pump at 10,000 PSI (690 Bar). It will put grease in stubborn fittings that don’t take grease with a hand pump grease gun. This also makes tensioning excavator (crawler) tracks, in the field, a simple job. The canister holds over two gallons of grease. That’s 20 standard size grease tube cartridges you need to replace for every one G.Gun refill. You spend a lot less time refilling or replacing grease tube cartridges and more time getting your equipment greased. You can maneuver to get at all of your grease fittings by moving the included 10-foot hose and attaching the LockNLube® Grease Coupler that comes with every G.Gun. No need to pick up and move the G.Gun, simply pump with your foot. The ultimate in industrial greasing strength - foot-operated, over two-gallon capacity, 10,000 PSI output, patented pressure return valve that eliminates pressure locks. Delivers an ounce of grease in just 11 strokes.

Features:

• Develop over 10,000 PSI without batteries
• The patented pressure return valve easily clears pressure from the hose and returns it to the canister with no mess
• Includes the LockNLube® Grease Coupler, 10-foot hose, LockNLube Rebuild , and G.Scoop
• Industrial strength. Built and tested for the toughest environments
• Cut grease costs in half by using bulk grease. Includes the G.Scoop - the fastest and cleanest way to move bulk grease

Description	Specification
Delivery Rate	0.09 oz (2.7 ml) per stroke (~11 strokes per oz.)
Delivery Pressure	10,000 PSI (690 Bar)
Grease Canister Capacity	282 oz (8 Kg) grease
Delivery Hose	10 ft (3 m) x ¼” (6.35 mm), 2 wire hydraulic hose. Burst rated @ 23,206 psi (1,600 Bar)
Grease Coupler	LockNLube® Grease Coupler. Max. pressure rated at 10,000 psi (690 Bar). Trigger activated lock-on for max seal to Zerk nipple.
Coupler Thread	⅛” NPT female

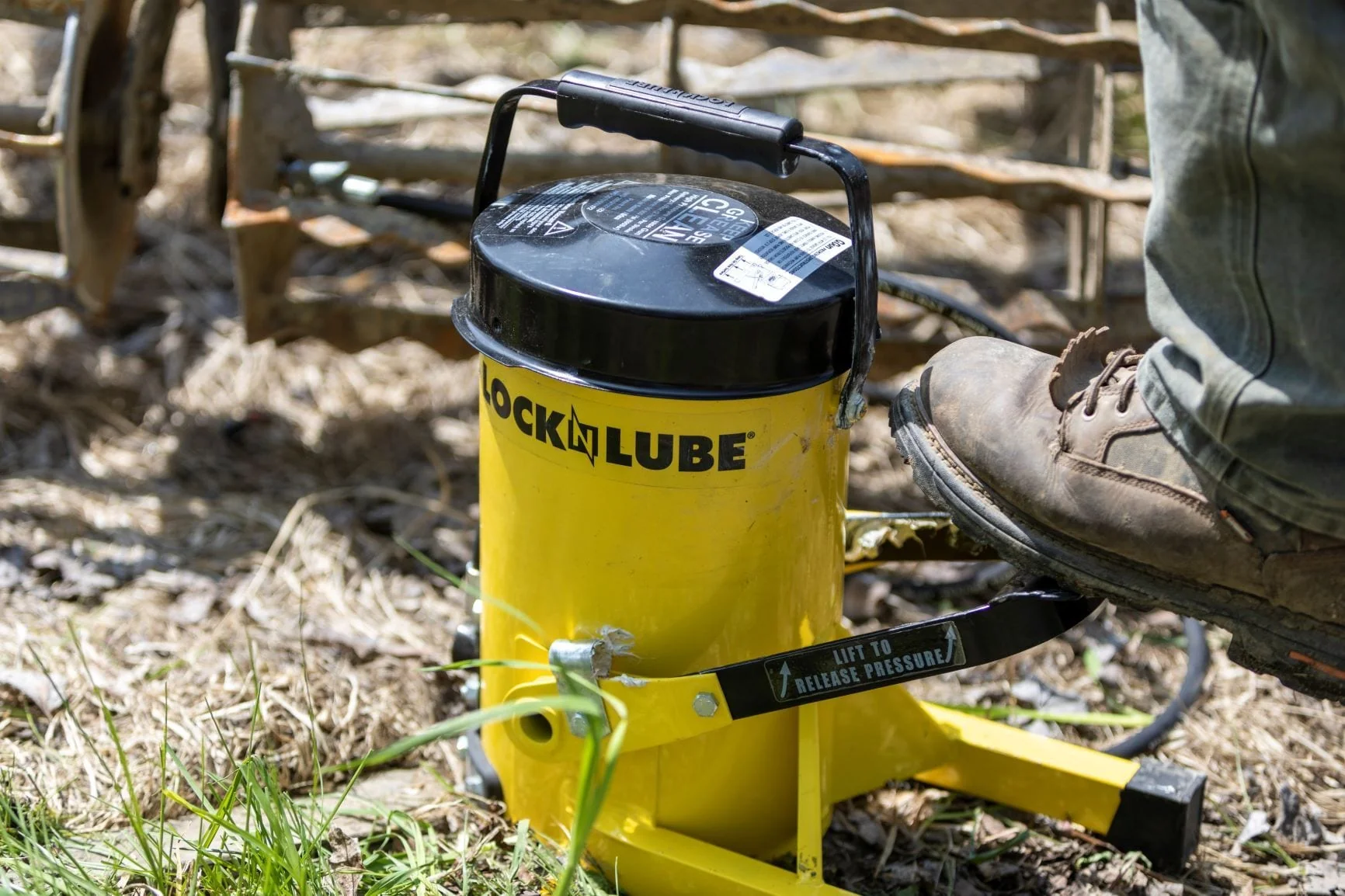

Pump Activation	Foot operated

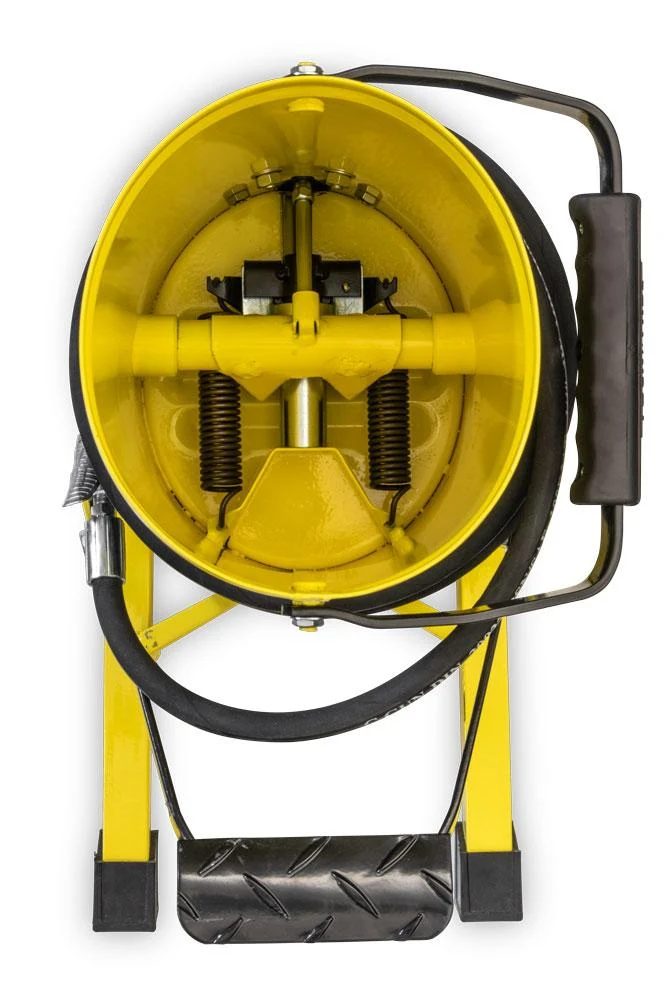

Pump Mechanism	2-stage self-priming pump with pressure return valve.
Dimensions & Weight	L: 18½ x W: 10¼ x H: 16½ In (L: 470 x W: 260 x H: 420 mm). Dry weight: 22 lbs. (10 kg).
Patent	US Patent #9,097,385





For instructions on priming your G.Gun before using it, see the article and video here.
