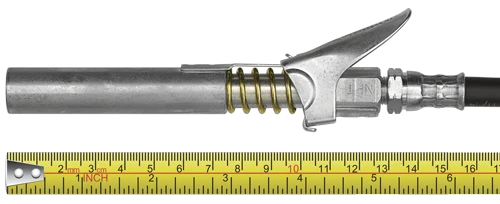

The LockNLube^® Grease Coupler XL, just like the shorter original, is compatible with all grease guns and grease fittings. It does not leak once locked on and will not pop off under pressure. No hands are needed to align or hold the coupler in place while greasing. You have both hands free to operate your grease gun and know that the grease will go in, not on, your machine. Guaranteed. The XL is suited for all machines, but especially useful for U-Joints, Harvester Heads, shielded PTO shafts, and any fittings buried deep behind a shield. With almost 4" of reach, you can be confident that you'll reach your fittings and grease will go in, not on, your machine. When you want to release the coupler, simply depress the thumb lever, even at extreme pressures.

Product Features

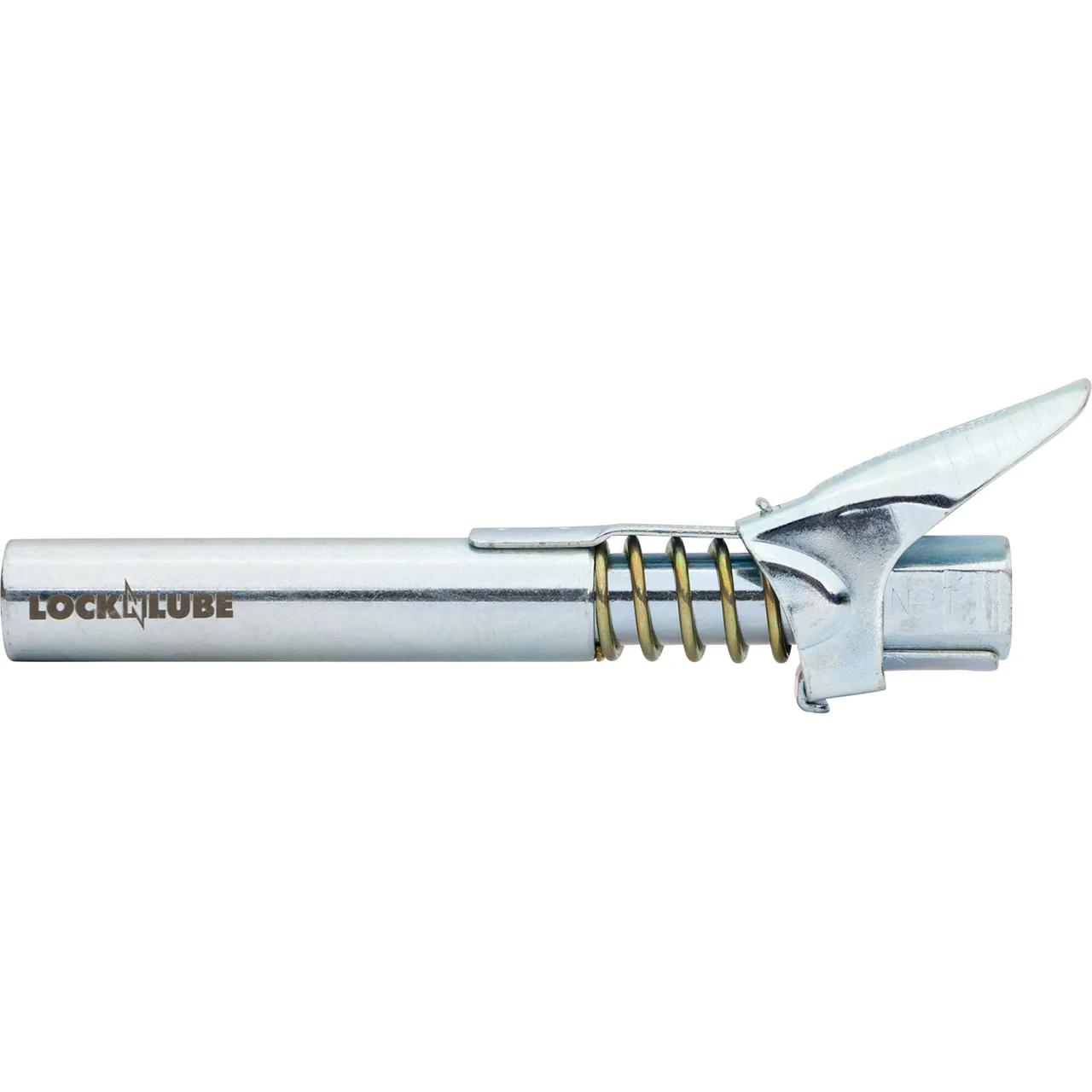

It has a unique sliding sleeve, activated by a thumb lever. The sleeve locks the four spring-steel jaws onto the Zerk fitting, and releases the jaws by pushing on the thumb lever. When the jaws are locked onto the Zerk, a leak-proof seal is created. The locked connection is positive and rigid preventing the coupler from coming loose and breaking the leak-proof seal. If a fitting becomes pressurized, especially a recessed one, just depress the thumb lever and release the coupler. The LockNLube® Grease Coupler XL features almost 4″ of reach, 2″ more than the standard LockNLube® Grease Coupler. Especially suited for deeply recessed fittings, and with the same leak-free, hands-free convenience of the traditional model.

Replaceable Seal & Jaws

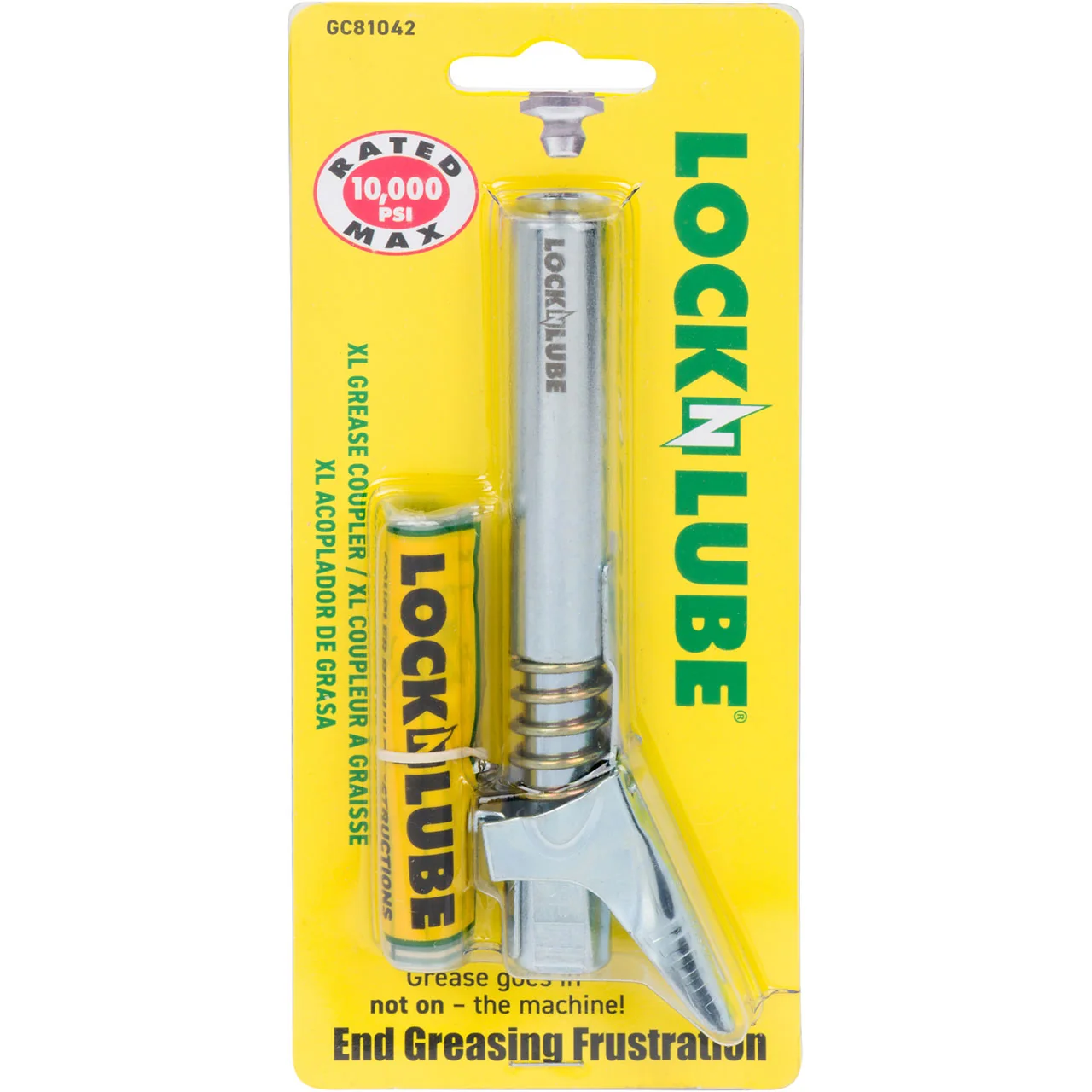

The LockNLube^® Grease Coupler XL is fully rebuildable. If it starts to leak, you simply replace the seal and jaws and it is as good as new. See our tutorial here. The rebuild kits for the LockNLube^® Grease Coupler and the LockNLube^® Grease Coupler XL are identical and can be used in either model.



Description	Specification
Max pressure	10,000 psi (690 Bar)
Zerk Compatibility	Fits all DIN and SAE specification Zerks (grease nipples).
Coupler Thread	⅛” NPT female thread.
Dimensions	L: 5″ x W: 5/8″ x H: 1⅗ In (L: 127 x W: 16 mm x H: 41 mm)
Diameter (front of coupler)	5/8 in (16 mm). Fits most recessed Zerks (grease nipples). ~1mm larger than standard coupler
Effective Reach (Nose to trigger)	3.6 in (91 mm)
Weight	5.8 oz. (164 grams)
Grease Gun Compatibility	Works with all grease gun types: pneumatic, manual, and electric.
Seal	Durable nitrile rubber seal for longevity under high pressure
Lock-on Mechanism	Four hardened steel jaws are resilient under high pressure. Patent protected.
Patent	US Patent #8,955,544



Spec Sheet: LockNLube Grease Coupler Spec Sheet

Replacement: Illustrated Rebuild Kit Replacement Instructions

Warning: Milwaukee Grease Gun Owners – Please see this warning

Check This: Coupler Won’t Fit? Check here first.
