Grease Gun XL Coupler & Grease Buster GB17.

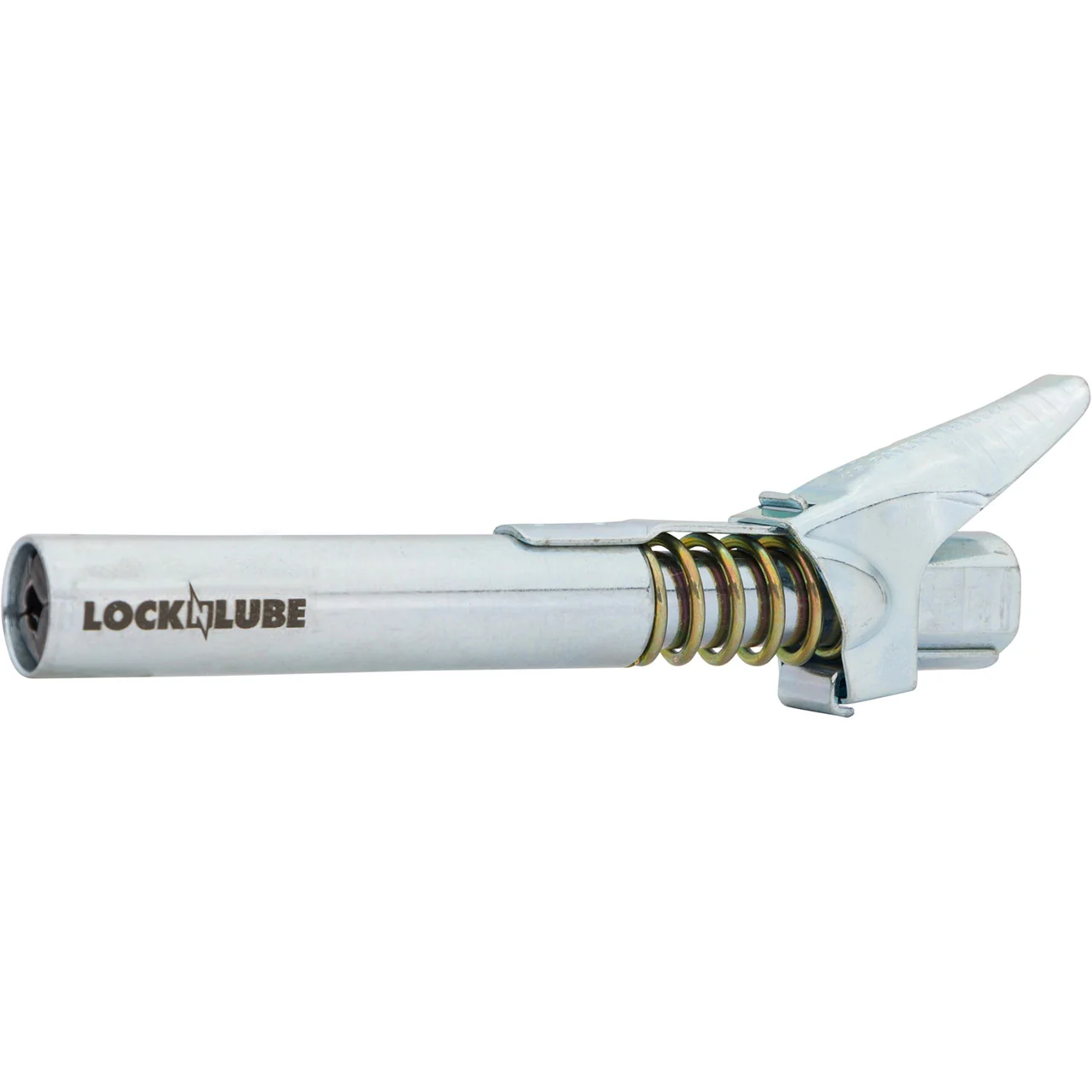

  The LockNLube® Grease Coupler XL, just like the shorter original, is compatible with all grease guns and grease fittings. It does not leak once locked on and will not pop off under pressure. No hands are needed to align or hold the coupler in place while greasing. You have both hands free to operate your grease gun and know that the grease will go in, not on, your machine. Guaranteed.

• Rated to 10,000 PSI! Locks on, stays on. Does not leak once locked on.
• Hands-free - does not pop off under pressure.
• Easily release from fittings with the thumb lever, even at extreme pressure.
• No more broken Zerks
• Over 3.5"" of reach. Great for shielded PTO shafts, axles, harvester heads, U Joints and other recessed grease fittings.
• Fits all standard Grease Guns - 1/8 NPT fitting. Fits all SAE and Metric Zerk fittings. Simply replace your existing coupler.

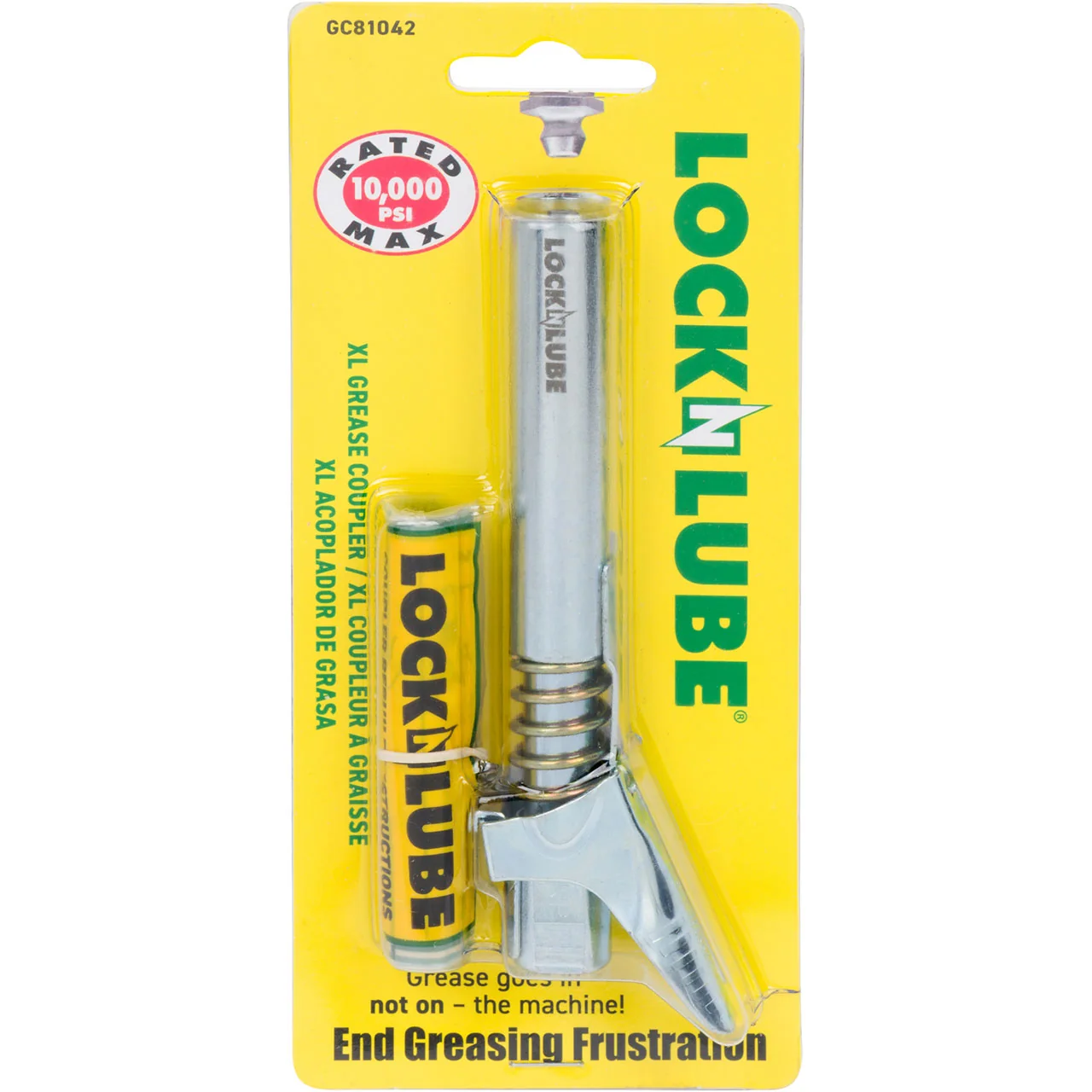

• Available with or without a spare rebuild kit! The LockNLube® is the world's only rebuildable grease coupler. Lowest lifetime cost.

    Grease Buster® Coupler Assembly — stronger, more durable construction for a more secure connection.

• Cleans and flushes out old dried grease from fittings, pins, shafts, bushings, and joints
• Uses penetrating fluid and hydraulic pressure
• Features a textured grip and two O-rings on the piston for a secure, reliable seal
• Reduces downtime. Much cheaper than new bearings!
• Hose extension and pneumatic piston available
• Not for use with sealed bearings

Coupler XL  Specifications:

Description	Specification
Max pressure	10,000 psi (690 Bar)
Zerk Compatibility	Fits all DIN and SAE specification Zerks (grease nipples).
Coupler Thread	⅛” NPT female thread.
Dimensions	L: 5″ x W: 5/8″ x H: 1⅗ In (L: 127 x W: 16 mm x H: 41 mm)
Diameter (front of coupler)	5/8 in (16 mm). Fits most recessed Zerks (grease nipples). ~1mm larger than standard coupler
Effective Reach (Nose to trigger)	3.6 in (91 mm)
Weight	5.8 oz. (164 grams)
Grease Gun Compatibility	Works with all grease gun types: pneumatic, manual, and electric.
Seal	Durable nitrile rubber seal for longevity under high pressure
Lock-on Mechanism	Four hardened steel jaws are resilient under high pressure. Patent protected.
Patent	US Patent #8,955,544





Grease Buster GB17 Specifications:

Material: Buna Nitrile Rubber

• For use across a wide temperature range from -30 degrees F to 250 degrees
• Good/Excellent resistance to many petroleum oils/greases, hydraulic fluids, alcohol, mineral oil and grease
• Compatible with Aliphatic Hydrocarbons (propane, butane, petroleum oil, mineral oils and greases, diesel fuel and fuel oil)
• Not Compatible with product fuels with a high aromatic content; aromatic hydrocarbons (benzene); Chlorinated hydrocarbons (Trichloroethylene)

Grease Coupler XL Spec Sheet: PDF

Grease Coupler Replacement Instructions: PDF

Grease Buster GB17: VIDEO
