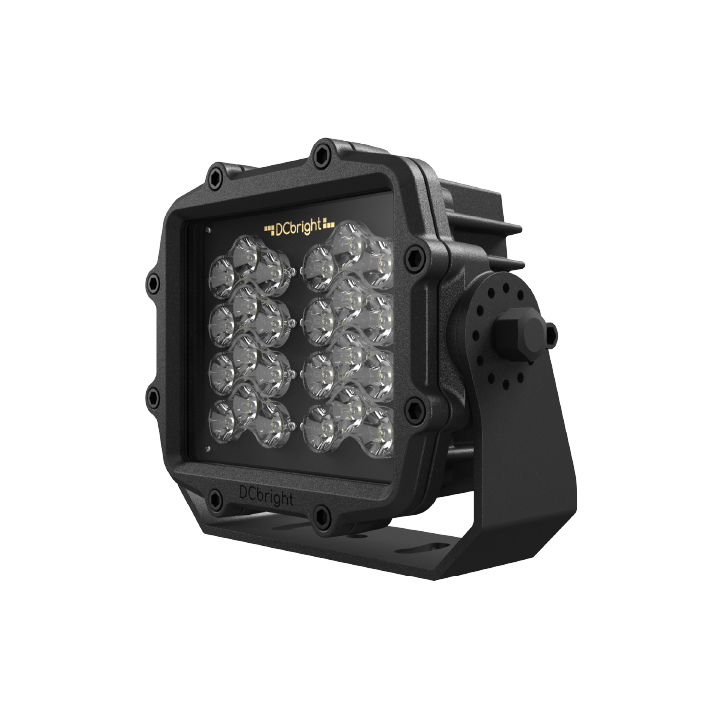

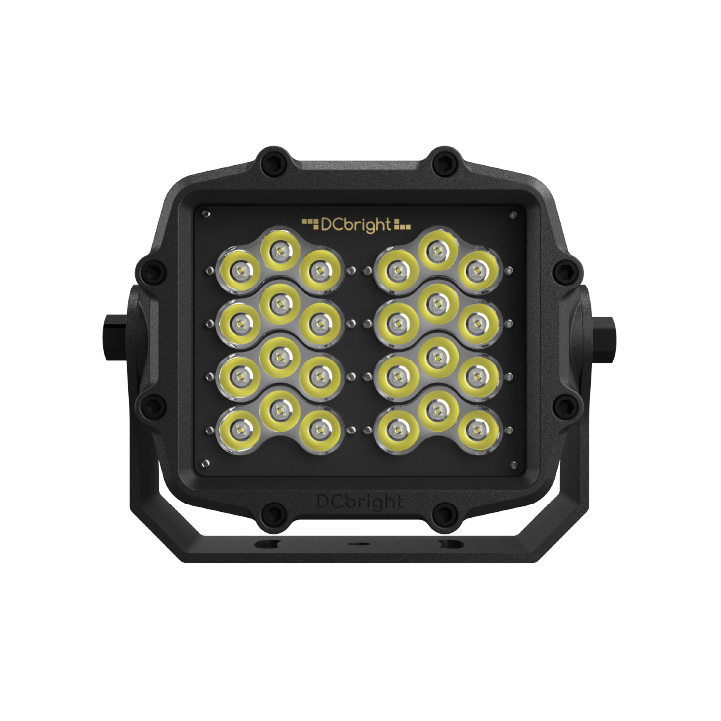

The Marlin was developed for applications where a standard work light falls short, but a larger fixture such as the Barracuda or Orca is not necessary or practical. With 120W power, approximately 18,000 lumens, and the same robust protection philosophy as the rest of this product family, the Marlin is intended for harsh environments where compactness, reliability, and functional light must come together.
Compact heavy-duty floodlight for heavy industrial, maritime, and machine-related applications
The Marlin was developed for applications where a standard work light falls short, but a larger fixture such as the Barracuda or Orca is not necessary or practical. With 120W power, approximately 18,000 lumens, and the same robust protection philosophy as the rest of this product family, the Marlin is intended for harsh environments where compactness, reliability, and functional light must come together.
Lighting Technology & Electrical
Luminous flux: 18,000 lumens
Efficiency: 150 lumens/W
Power consumption: 120 W
Available voltage range: 90-305 VAC or 180-528 VAC
Current consumption Approx
. 0.25-0.32 A at 380-480 V
Approx. 0.43-0.55 A at 220-277 V
Approx. 1.0 A at 120 V
Construction & Performance
IP rating: IP69K
Impact resistance: IK10
CRI (Ra) standard: >70
CRI (Ra) optional: >80 or >90
Operating temperature range: -45°C to +50°C (-49°F to +122°F)
Expected LED lifespan: L95B10 (TM-21), 360,000 hours
Housing material: aluminum alloy, <0.08% copper
Bracket material: high-quality 316L stainless steel
Coating: conversion layer + 2-layer titanium-based e-coating
Pre-material: UV-protected polycarbonate (IK10) or impact-resistant glass (IK09)
Color: Titanium Black
Cable type: H07BQ-F, 2.0 m
Connection: pre-assembled connection cable with exposed conductors
Dimensions & weight
Fixture weight: 5.5 kg (12.1 lb)
Product dimensions: 235 x 215 x 90 mm (9.25 x 8.46 x 3.54 in)
Packaging dimensions: on request
Light color & optics
Cool white: 6500K
Neutral white: 4000K
Warm white: 2700K
Amber: 2200K
Also available in two-tone version (cool white / amber)
Beam angles & application
Marlin is adjustable in 30º increments
14° spot – for long-distance illumination
38° floodlight – for medium-distance illumination
69° floodlight – for wide illumination at short distances
14° x 46° flare – for wide but focused illumination at a distance
Warranty
5-year limited product warranty
Product certification
CE, ENEC, IEC 60598.
