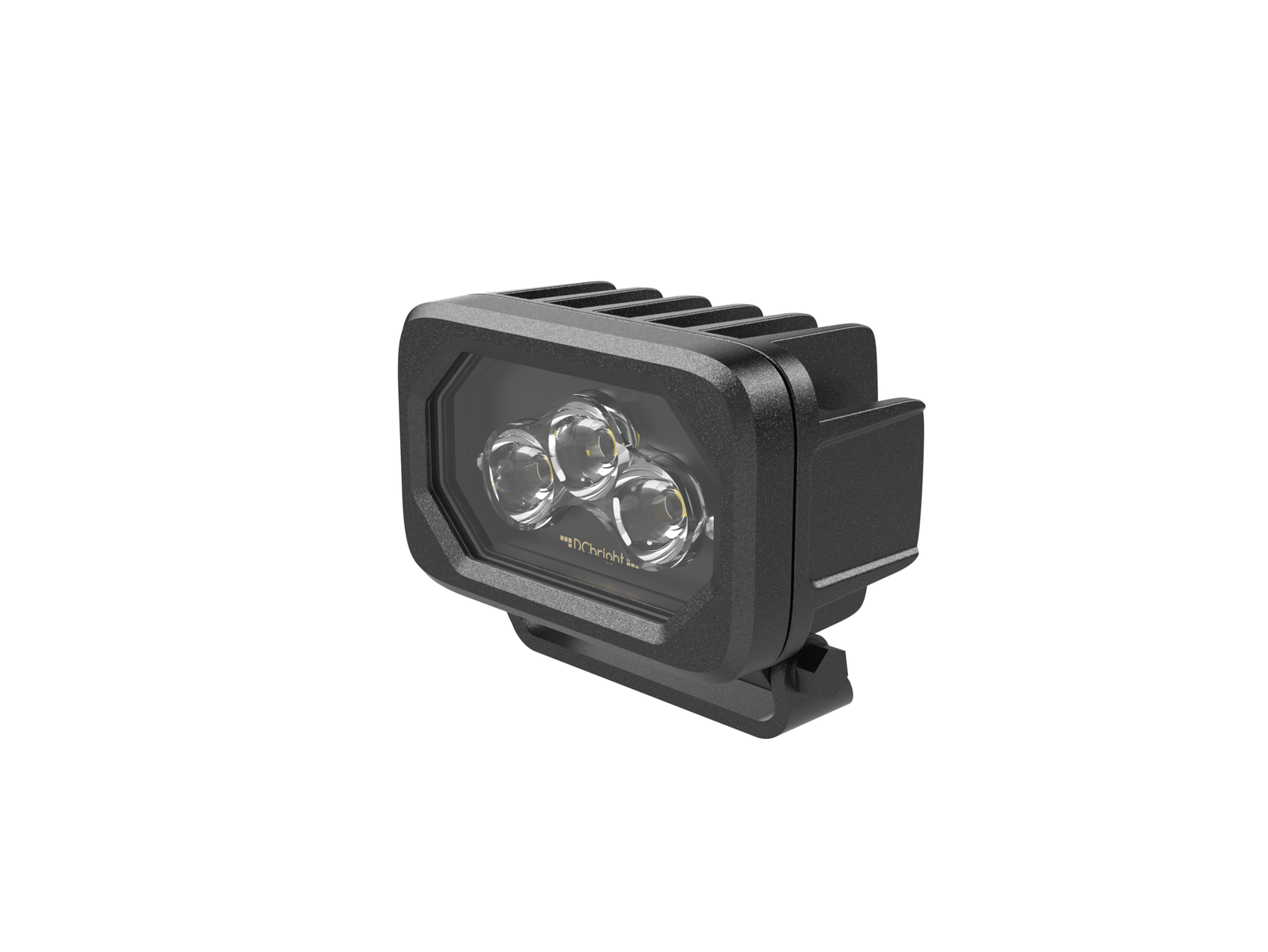

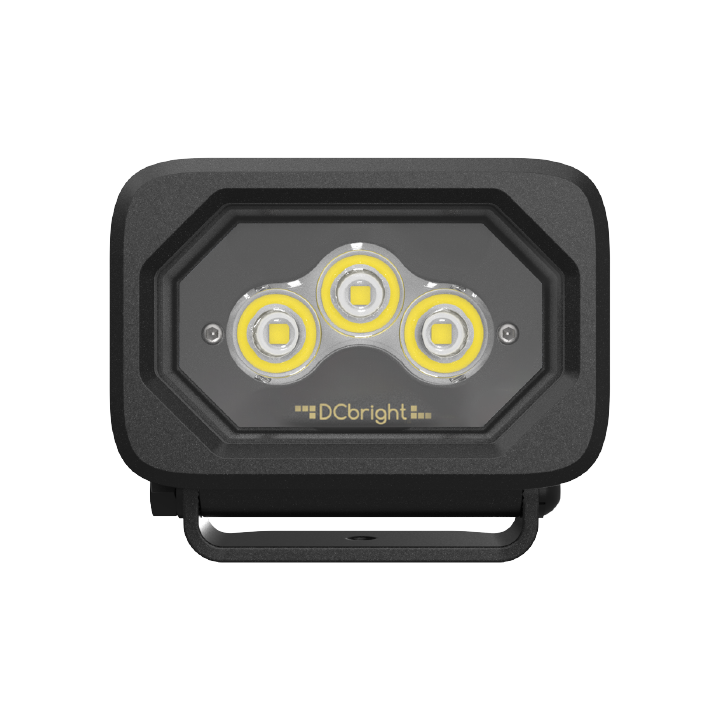

The Goby Mini has been developed as a professional work light for intensive daily use on machines, vehicles, and other equipment where a compact housing is desired. It is not just about size, but about the combination of robust construction, professional finish, and a form factor that remains practical for use in diverse working environments.

Lighting technology & electrical
Luminous flux: 2,300 lumens
Efficiency: 128 lumens/W
Power consumption: 18 W
Available voltage range: 9-32 VDC

Current consumption Approx
. 0.8 A at 24 V
Approx. 1.5 A at 12 V
Also available in AC version, ask about the possibilities.

Construction & Performance
IP rating: IP69K
Impact resistance: IK10
CRI (Ra) standard: >70
CRI (Ra) optional: >80 or >90
Operating temperature range: -45°C to +50°C (-49°F to +122°F)
Expected LED lifespan: L95B10 (TM-21), 360,000 hours

Housing material: aluminum alloy, <0.08% copper
Bracket material: aluminum alloy, <0.08% copper
Coating: conversion layer + 2-layer titanium-based e-coating
Pre-material: UV-protected polycarbonate (IK10) or impact-resistant glass (IK09)
Color: Titanium Black
Cable type: H07BQ-F, 30 cm
Connector: DT04-2P (German plug)

Dimensions & weight
Fixture weight: 1.1 kg (2.4 lb)
Product dimensions: 112 x 70 x 60 mm (4.41 x 2.76 x 2.36 in)
Packaging dimensions: on request

Light color & optics
Cool white: 6500K
Neutral white: 4000K
Warm white: 2700K
Amber: 2200K
Also available in two-tone version (cool white / amber)

Beam angles & application
Goby Mini is freely adjustable up to 180º
14° spot – for long-distance illumination
38° floodlight – for medium-distance illumination
69° floodlight – for wide illumination at short distances
14° x 46° flare – for wide but focused illumination at a distance

Warranty
5-year limited product warranty

Product certification
CE, ENEC, IEC 60598.
